Tony Factory Price and Economical Pellet Machine

Product Description

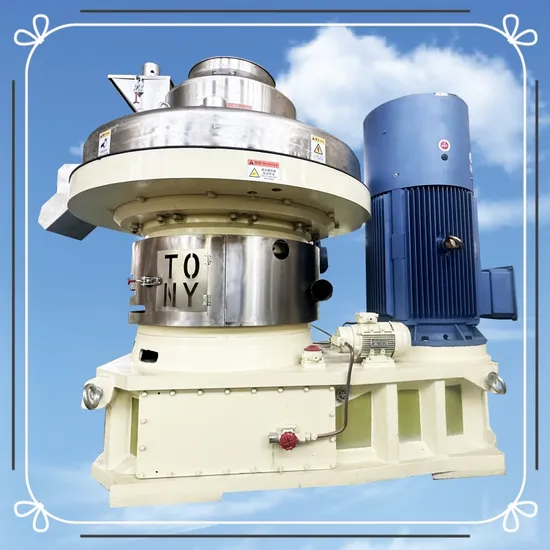

Tony Factory Price and Economical Pellet Machine
It is a newly wood pellet mill machine, researched, designed and produced by ourselves. It's mainly used to produce biomass pellets from the materials kinds of wood, waste wood and straws, etc. such as woodchips(palm, pine white pine, mahogany, pinus sylvestris, rubber tree), bamboo shavings, rice hust, seeds shells, peanut shells, halm, pennisetum, wheat straw, corn stalk, cotton stalks, alfalfa grass, bagrass, palm fiber, waste paper, non-physical material.
Requirements for raw materials

Size:Less than 5 mm All the raw materials must be crushed into sawdust before going to wood pellet machine.If not, you may need a wood chipper, wood crusher. Moisture:10-15% Better for pelletizing high quality pellets, Final Pellets For burning Ø6mm/8mm: household stove burning; Ø8mm-18mm: Industrial using Energy Level: 5kwh/kg, Compared to Oil: 1 lty oil = 2kg wood pellets

Features of wood sawdust pellet making machine
Self -lubrication system
A.Spindle automatic lubricatin system
B.Roller automatic lubricatin system :it can keep the pellet machine in maintenance for 24hours.
Output of pellet mill machine: Our machine can reach the expected output in our technical parameter.
Working Life of spare parts: Working life of our dies is 3000-4000 hours, much longer than others'.
Number of Our Ring Die holes: Our ring die has 5 rows of holes, much more than others'.
Driving Method of pellet machine: Our machine is drived by gear,not reduction box; Gear driving is helpful to increase the usage life of gear, so the maintenance rata of gear is much lower.
Forged Main Shaft: Our main shaft is forged, not casted. As well known, there is no air bubble in forging process, so it is hard to be broken.
Details and Technical Pareameters

A Complete Set of Pellet Machine includes
1 Pellet Machine Host
2 Cyclone and Dust Collector
3 Electric Control Cabinets
4 Automatic Lubrication System

High Quality Spare Parts
Double-layers Ring Die
All kinds of pellet machine only have 1 die(ring die).Material: alloy, stainless steel Life time: 3000-4000hours1.The professional heat treatment processing technology can make its hardness above HRC62.2.Vertical Ring die, feeding vertically.3.Double-lay die, dual use. When one side is damaged, turn over and use the other side.4.The compression ratio can be custom made
Rollers1.Number of rollers:2 pieces2.Die fixed, rollers running, materials centrifugal and evenly distributed around.3.Structure:roller shell and bearing4.Working life of rollers:1500-2000 hours
Spindle1.Our main shaft is forged.2.no air insde the main shaft while being forged3.hard to be broken while high-speed running
Self-lubrication System1.Lubricating rollers to make the pellet press machine continuously run for 24 hours(using lubricating grease).
2.It also has the warning function when high pressure/temperature or low pressure/temperature appear.
Product Parameters
Company Information Shandong Tony Environmental Protection Technology Co., Ltd. is a integrated enterprise specializing in the developing, anufac-turing and international trade of pellet equipments for years.Tony main processing areas are logs or furnature waste, agricultural crop stalks, animal feces and so on.
TONY's Exhibition
In France, In Germany, In Spain, In Italy, In Poland, In Iceland, In Russia, In Pakistan, In Chile, In South Korean, In Japan, In Thailand, In Vietnam, In Indonesia, In Singapore, In Malaysia, In Croatia, In Bulgaria, In Serbia and other places that need pellet machinery all over the world, Tony shows its excellence.
Best Service

1-24 Hours Online Service. -Inquiry will be replied within 2 hours. -All-the-way tracking service offered from placing order to delivery. -Free training for operation, debugging and daily maintenance. -We can provide professional guide installation. -One year warranty and all-round after-sales service. -Customized design and flow chart are available for our clients. -Independent R&D team and strict & scientific management system

If you are interested in our straw pellet mill,please send us inquiry freely. Before quotation we need to know:1. What's the capacity you plan to produce?
2. What's the raw material?
3. What's the size of the raw material?
4. What's the moisture content of your raw materials?
5. What's the final pellet size do you want?
