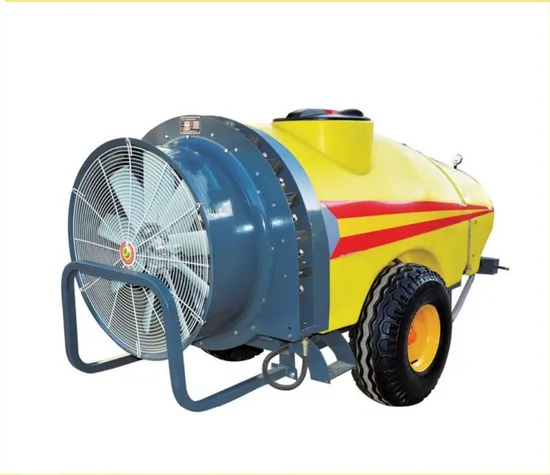

Garden New Type Orchard Insect Tractor Sprayer Fog Tank Air Blast Sprayer

Product Description

Garden New Type Orchard Insect Tractor Sprayer Fog Tank Air Blast Sprayer:
Product Description

The trailer air blast sprayer is used together with tractors of more than 50hp. The PTO transmission shaft is used to drive the spray pump and spray fan at the same time. With simple mechanical transmission, the driver can easily operate the machine independently. When the machine is moving, under the joint action of the medium pressure fan and the high pressure drug pump, the liquid medicine is uniformly atomized, and the droplets are extremely fine. With the help of the super large air volume and gentle air flow, make the inner and outer layers of fruit branches and leaves quickly adhere to the medicinal liquid on the front and back sides, saving water and medicine by over 30%. The fan adopts a gearbox transmission, which can adjust the atomization effect.
It is mainly used for prevention and control of orchard pests foliar fertilizer. It has the mist evenly, high production efficiency, strong penetrating power, labor intensity is small, the liquid drug coverage, good adhesion, etc. It is suitable for spraying the medicament for the planter of bean, corn, cotton, grain. Also for lawn,fruiter,vegetable, road side tree.
Main Features
1.Fan sprinkler head made in Germany.
2. Our product is designed with pressure relief backflow and negative pressure recovery equipment in place to ensure the closure of the pipe where the liquid is returned to the container, reducing liquid waste and environmental pollution.
3. Mixing injection device is provided in the container so that the liquid medicine can be mixed evenly.

Product Parameters

Model	3WFQ-800	3WFQ-1000	3WFQ-1200	3WFQ-1500	3WFQ-2000
Overall size (mm)	2300x1300x1400	2660x1300x1460	3100x1400x1500	3300x1400x1500	3720x1510x1630
Max Capacity	800L	1000L	1200L	1500L	2000L
Horizontal range	20000mm	20000mm	22000mm	22000mm	22000mm
Matched power	≥50hp	≥50hp	≥50hp	≥50hp	≥50hp
Structure form	Trailed	Trailed	Trailed	Trailed	Trailed
Working pressure	0.5-1.0Mpa	0.5-1.0Mpa	0.8-1.0Mpa	0.8-1.0Mpa	0.8-1.0Mpa
Rated flow	80-100 L/min	80-100 L/min	80-100 L/min	80-100 L/min	100-140 L/min
Fan diameter	800mm	800mm	800mm	800mm	880mm
Working rate	2.33ha/h	2.33ha/h	2.67ha/h	2.67ha/h	2.67ha/h

Detailed Photos

Scope of Application

Company Profile
Shandong Zhaodi Machinery Company Limited, established in 2016, which is located in Yucheng City Shandong Province China. Focusing on the research, design, production and sales of AGRICULTURE MACHINE and SPARE PARTS. Our main products cover different kinds of disc harrow, Disc plough, mower, trailer, seeder, harvest machine and accordingly spare parts, for example, disc blades, plough share, plough hub, bearing assemble and so on. We can also produce the products according to customer's drawings and samples.
Our products are mainly exported to Southeast Asia, Europe, Middle East, South America, North America, Africa and other countries, our Henrid Industry already formed with high-quality products, good service, and many customers' praise in the market competition.
We are always insisting on the principle of "Mutual Cooperation and Common Development" and the aim of "Quality is No. 1, 100% Customer Satisfaction". Working with us, customers can get more benefits and value.

FAQ

Q: What's your delivery time? A: Generally, 15-20 days after receipt of deposit, but the specific time depends on order quantity.
2. Q: What are your terms of package?
A: Carton Box.
3. Q: What is your terms of payment?
A: 30% T/T as deposit, 70% before delivery.
4. Q: WHat are your terms of Trade?
A: EXW, FOB, CFR, CIF
5. Q: Can I get some samples?
A: Yes, we are honored to offer you samples.
6. Q: Do you test all your goods before delivery?
A: Yes, we will 100% test before delivery.
