800-900bph Semi-Automatic Pet Bottle Blow Molder

Product Description

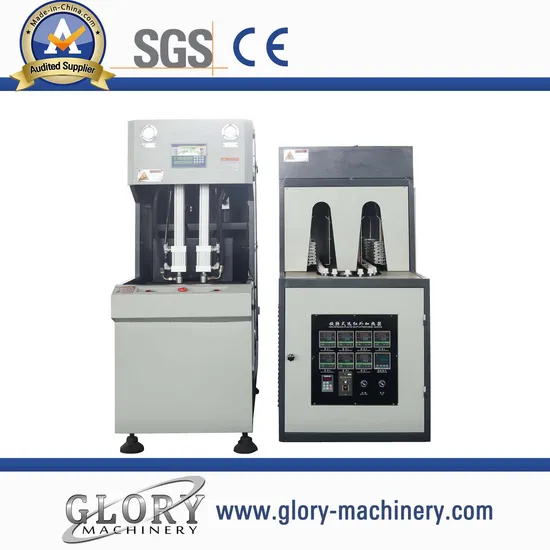

GMS-800:800-900BPH semi-automatic pet stretch blow molding machine
Product max volume:2L
Suitable for blowing bottles between 150ml to 2000ml
Necessary auxiliary devices:High pressure air compressor, Air filter.
Semi-automatic blow moulding machine Use integated mic computer controler,with OMRON control chip,the response speed is very quickly and the timing very precisely.Use life durable and failture rate very low.It's the revolutionary product of industrial control. High responsiveness pneumatic components,action timely and precisely Thorough safe operation mechanism,start-up with two hands,avoid the accident during the operation Infrarted heating technology,safe and energy conservation,no pollution of the environment.With the 8 rates adjustable temperature controler,make the temperature suitable for blowing. Technology advantage: Special design,high rigid compound die structure Wide adaptability, suitable for every type mould thickness Adjust convenience No mould rolling out More energy conservation,no need much air supply High burnish principal axis, with very precise polishing, light action and low noise. Short mould stroke,quick action All ZG45 casting, with long timing process,very small transformation,can meet your precise request 100% Hig dead-weigh, ensure the steady during the operation Main parameters :

Main machine (blowert + oven)	Model type	Tech data
Product Spec	Max. product volume(L/cav)	2
	Max. preform neck size(mm)	100
	Max. product diameter(mm)	180
	Max. product height (mm)	300
	Cavities	2
Blow molding part	Die force (KN)	100
	Die stroke (mm)	270
	Max. mould size(mm)	390*345
	Mould thickness	Adjustable
	Mould spacing(mm)
	Max. pulling stroke(mm)	400
	Operation pressure(Mpa)	0.8-1.0
	Operation air pressure consumption (1tr/min)	200
	Blow pressure(Mpa)	1.2-2.8
	Blow air pressure consumption (1tr/min)	300
	Output(pcs/h)	800-1000
	Machine size(LxWxH)(m)	1.46*0.58*1.8
	Machine weight(KG)	650
Oven	Temperature grade(rate)	8
	Heating time(S)	90-200
	Voltage(V)	220 or as your request
	Frequency(HZ)	50/60
	Total power(KW)	16
	Oven Size (LxWxH)	1.60*0.55*1.40
	Oven weight (KG)	200

GM-0037
