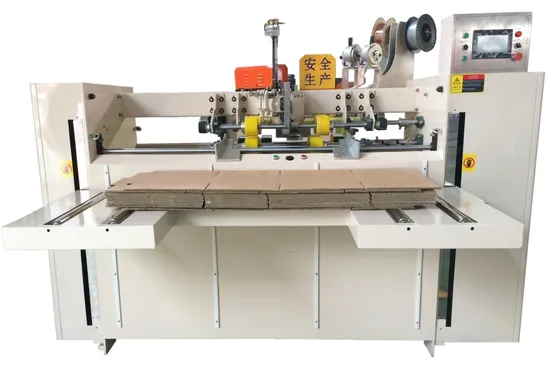

Lincheng High Quality Semi-Automatic Stitching Machine Lum-B 2000/2500/3000

Lincheng High Quality Semi-Automatic Stitching Machine Lum-B 2000/2500/3000

US$10,000.00-12,000.00 1 Piece (MOQ)

Basic Info.

Condition
New
Certification
CE
Automation
Manual
Suitable for
Paper
Paper Thickness
Thick Paper
Transport Package
Wooden Package
Trademark
Lum
Origin
Kunshan

Packaging & Delivery

Package Size
3850.00cm * 1700.00cm * 1800.00cm
Package Gross Weight
2700.000kg

Product Description

Product Description LUM-B Semi-automatic stitching machine
Product Parameters
Technical parameter:

Model and Configuration		 LUM-B 2000 LUM-B 2500 LUM-B 3000
(A+B)*2 (mm)
Maximum size (A+B) x2 		3740 (1100+770)mm 4740mm 5740mm
(A+B)*2 mm)
Minimum size (A+B) x2		 700mm 700mm 700mm
(C+D+C)
Maximum size( C+D+C) 		2500mm 2500mm 2500mm
(C+D+C)
Minimum size( C+D+C) 		400mm 400mm 400mm
C
Minimum cover C		 20mm 20mm 20mm

Maximum cover C		 310()mm
500()mm		 500 mm 500 mm
B
Maximum width B 		770 mm 920 mm 1070 mm
B (mm)
Minimum width B 		150 mm 150 mm 150 mm
A
Maximum length A 		1100mm 1450mm 1800mm
A
Minimum length A 		200mm 200mm 200mm
D (mm)
Maximum height D		 2000 mm 2000 mm 2000 mm
D (mm)
Minimum height D		 150 mm 150 mm 150 mm
E
Max nailing width E		 40 mm 40 mm 40 mm

Max board feeding height		 900mm 900mm 900mm

Dimension		 2850x1700x1800mm 3350x1700x1800mm 3850x1700x1800mm
(kg)
Weight		 2000kg 2300kg 2700kg
(nail / min)
Mechanical speed 		600nail/min 600nail/min 600nail/min

Nailing number		 2-99 2-99 2-99
Stitching board sample:
Certifications
Company Profile
Features Features:
1.It features appearance of new, high speed, smooth operation,,stitching firmly,bottom die carbide, long life and other characteristics;
2.Adapt to a variety of corrugated boxes stitching,high efficiency, high speed, single,double nails with adjustable.
