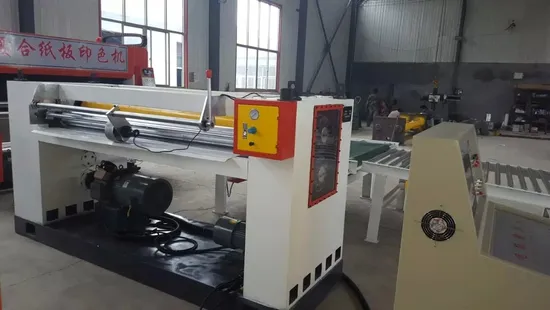

Nc Computer-Control Rotary Cut-off Machine

Product Description

NC Computer-control Rotary Cut-off 1) NC Computer-control Rotary Cut-off computer controlled AC servo controller, drive inverter motor work to achieve high-precision cutting.
2) Orders with real-time input, edit, modify, save, real-time monitoring (paper speed, cut length, remaining length, production process, etc. parameters), change order (serial change order, mandatory change order, priority input), production statistics, remaining orders, warning etc. functions.
3) Instantaneous and numerical control cutting length, can amend, add, and cancel at any time.
4) Knife roller transmit gears adopt high-precision grinded gear, spray lubrication.
2/3/4-ply Hard Cardboard Production Line 1) YZ 2/3/4-ply Industry Cardboard Production Line consists of the following machines, Electrical Shaftless Mill Roll Stand, Overhead Conveyor Bridge, Preheater, Gluer, Pressing Unit, Drying Unit, Finalizing Unit, Driving Unit, Slitter, NC Cut-off, etc.
2) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.
4) It is the ideal and perfect equipment for manufacturing cigarette, wine, gaskets, hardcover book cover, luxury gift boxes, stationery and other packaging materials.

Max Effective Width	1100~2200mm
Max Paper Roll Diameter	1500mm
Max Paper Roll Weight	3000kg
Min Slitting Width	150mm
Cutting Length	500~9999mm
Design Speed	100m/min
Heating Method	Electrical Heating
Economic Working Speed	40~80m/min
