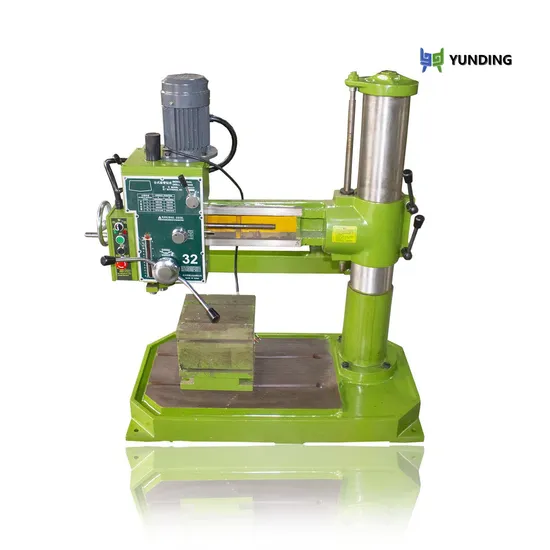

Hydraulic Clamping Drill Press Z3032p Metal Electric Radial Drilling Machine for Sale

Product Description

Product Description
Hydraulic Clamping Drill Press Z3032p Metal Electric Radial Drilling Machine for Sale
we are the most professional in making radial drilling machine
Product Parameters
Features:With wide range of speed, with manual-power feed. The feed of machines are very easily engaged and disengaged at any time.
The radial arm can rotated and can tilted± 45° , it reliable and easy job can be done.
Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality.
The machine with small appearance and much function, the machine are widely used for drilling, counter boring, reaming, tapping etcStandard accessories:Drill chuck Φ16mm, taper shank sleeve, taper shank post, under the knife iron, box table
Special attachment:
Rack, angle pliers, eye shield

Main technical parameters	Specifications	Units	Z3032X10
	Max. drilling diameter	mm	φ32
	Distance spindle nose and working surface of base	mm	320-1080
	Distance from spindle axis to column	mm	270-885
	surface
	Column diameter	mm	200
	Worktable size	mm	475x330x295
	Spindle travel	mm	150
	Spindle taper		MT4
	Spindle speeds range	r/min	65-1000(6 steps)
	Spindle feeding range	mm/r	0.10 0.16 0.25(3 steps)
	Rocker rotary angle	°	±90°
	Main motor power	kw	1.5/2.2
	Lifting motor power	kw	0.75
	Net weight	kg	1080
	Overall dimensions(L×W×H)	mm	1400×640×2150

Realistic photos
Detailed Photos

·Spindle box handle with integrated headstock, precision casting. The handle and handwheel control are easy to operate.
·Motor products adopt pure copper motor in line with national standards, high power, stable performance and long service life.
·Worktable adopts box type T-slot design, workpiece clamping is convenient.
·Upright high frequency quenching, good rigidity, high surface finish.
·The large weight and stiff construction of the drill ensures stability and vibration free operation
·The cube table ensures easy adjustment and filling of the workpiece
·Height adjustment of the arm by motor
·Control panel located on the front of the drill for better performance and ergonomics
·The polished surface of the column ensures easy, free and precise travel of the arm
·Drill equipped with manual blocking of the head and arm of the column,The large speed range ensures precise and fast processing
