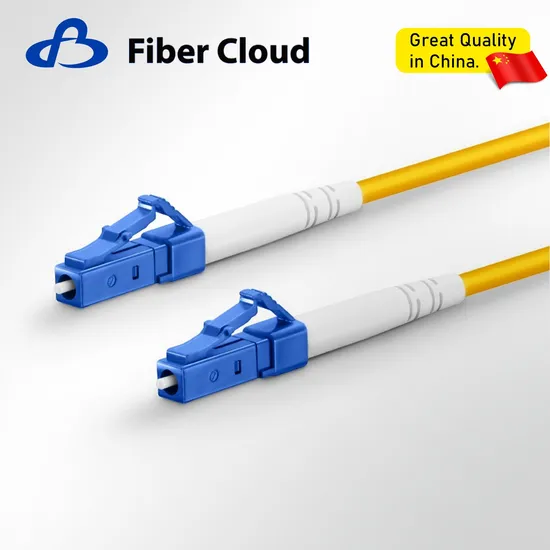

Customized Simplex OS2 Single Mode LC Sc FC St Lsh Mu MTRJ Upc Fiber Optic Patch Cord Cable

Product Description

Customized Duplex OS2 Single Mode LC SC FC ST LSH MU MTRJ UPC Fiber Optic Patch Cord Cable
Simplex Single Mode Patch Cord Fiber Optic Cable
The 9/125μm OS2 single mode bend insensitive fiber optic cable has less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high-density cabling in data centers, enterprise networks, telecom rooms, server farms, cloud storage networks, and interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas.
This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1633nm.

1). Low Insertion loss
2). High return loss
3). Good Repeatability
4). Good Interchange
5). Excellent Environmental Adaptability
1. Communication rooms
2. FTTH (Fiber to The Home)
3. LAN (Local Area Network)
4. FOS (fiber optic sensor)
5. Fiber Optic Communication System
6. Optical fiber connected and transmitted equipment
7. Defense combat readiness

Six Connectors Support Custom-tailored Installations
Product Parameters
Technical Characteristics

Connector Type	LC/SC/ST/FC/LSH/MU/MTRJ		Polish Type	APC/UPC
Fiber Mode	OS2 9/125μm		Wavelength	1310/1550nm
Insertion Loss	≤0.2dB		Return Loss	UPC≥50dB,APC≥60dB(LC/SC/ST/FC/MU/MTRJ)UPC≥55dB,APC≥75dB (LSH)
Fiber Grade	G.657.A1/G.657.A2		Min.Bend Radius	10/5D(Dynamic/Static)
Attenuation at1310nm	0.36dB/km		Attenuation at1550nm	0.22dB/km
Fiber Count	Duplex		Cable Jacket	PVC, LSZH, OFNP, OFNR,PE,TPU
Cable Diameter (Outer/Inner)	0.9/2.0/3.0mm		Polarity	A (Tx) to B (Rx)
Operating Temperature	-20to70°C(-4to158°F)		Storage Temperature	-40to80ºC(-40to176°F)

Three Jacket Materials Used in Diverse Cabling Zone
Certifications
Packaging & Shipping
Our Service: 1.Customers solutions in days, not weeks. 2.Warmly services with careful attentions. 3.Can provide your specific inquiry within 24 hours. 4.Save much costs, bring more benefit for customer to expand business. 5.We have been 10 years experience in this field. We are the prefessional supplier that you can trust.
6.we know china market very well ,so we can communicate to help you find the products you needed! 7.We acknowledge customer's stringent quality demands for optical fiber products and pledge to supply products meeting international standards. FAQ: Q1:How can you guarantee the delivery time? A:1. To avoid the delay, we have built a complete and professional procedure system from production to the deliver and have rich experience. 2. We can regulate the penalty clause in the contract for the late delay. Q2:What's your best price? A:Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time. Q3:What's your BRAND? A:FIBERCLOUD,YOFC,CORNING,OFS... Q4:Can I print our own logo on the product? A:Yes, Please send your logo to us. Q5:Can you provide OEM/ODM service? A:Yes, we can. Please tell us the details of your requirements Q6: How to deal with the faulty? A: First of all, our products are produced under a strict quality control system, and the defective rate will be less than 0.2%.
Secondly, we will conduct strict quality inspections and issue test reports before shipment to ensure the quality of the products. Q7:Why choose us to cooperate? 1. We have first-class production line and strict quality management system. 2. We have professional procedure system and big production capacity to guarantee fast deliver and on time shipment. 3. We can provide the most competitive price to meet your budget. 4. We also design and innovate the new products based on our rich experience . 5. We have professional team to provide comprehensive one-stop service for you.
6. we know china market very well ,so we can communicate to help you find the products you needed! Hope this would be a good start for our cooperation!
