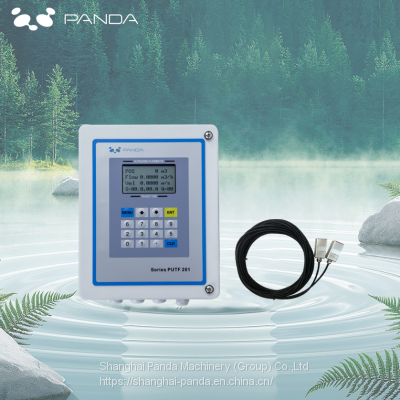

Digital Display Wall Mounted Clamp On Ultrasonic Digital Water Flow Meter
Product Details
Product Details
Product Description
Product DescriptionProduct Description
Details
Features
* 4 Lines Display Velocity, Flow Rate, Volume And Meter Status
* Clamp-on Mounted, Unnecessary Pipe Cutting Or Processing Interruption
* Acceptable Fluid Temperature Range -40℃~260℃
* Built-in Data Storage Is Optional
* Selecting Temperature Sensor PT1000 To Achieve Thermal Energy Measurement Function
* Suitable For DN20-DN6000 Flow Measurement By Selecting Different Size Transducers
* Bi-directional Measurement, Flow Range From 0.01m/s To 12m/s
Transmitter
| Measuring Principle | Transit-time |
| Velocity | 0.01 - 12 m/s, Bi-directional Measurement |
| Resolution | 0.25mm/s |
| Repeatability | 0.1% |
| Accuracy | ±1.0% R |
| Response Time | 0.5s |
| Sensitivity | 0.003m/s |
| Damping | 0-99s(settable by user ) |
| Suitable Fluid | Clean or tiny amounts of solids, air bubbles liquid , Turbidity<10000 ppm |
| Power Supply | AC: 85-265V DC:12- 36V/500mA |
| Installation | Wall Mounted |
| Protection Class | IP66 |
| Operating Temperature | -40℃ to +75℃ |
| Enclosure Material | Fiberglass |
| Display | 4X8 Chinese Or 4X16 English,Backlit |
| Measuring Unit | meter,ft,m³,liter,ft³,gallon,barrel etc. |
| Communication Output | 4~20mA, OCT, Relay, RS485 (Modbus-RUT), Data Logger ,GPRS |
| Energy Unit | Unit : GJ,Opt: KWh |
| Security | Keypad Lockout, System Lockout |
| Size | 244*196*114mm |
| Weight | 2.4kg |
Transducer
| Protection Class | IP67 |
| Fluid Temperature | Std. transducer : -40℃~85℃(Max.120℃) |
| High Temp : -40℃~260℃ | |
| Pipe Size | 20mm~6000mm |
| Transducer Size | S 20mm~50mm |
| M 40mm~1000mm | |
| L 1000mm~6000mm | |
| Transducer Material | Std. Aluminum alloy, High Temp.(PEEK) |
| Temperature Sensor | PT1000 |
| Cable Length | Std. 10m (customized) |
Details
TransmitterTransducer
