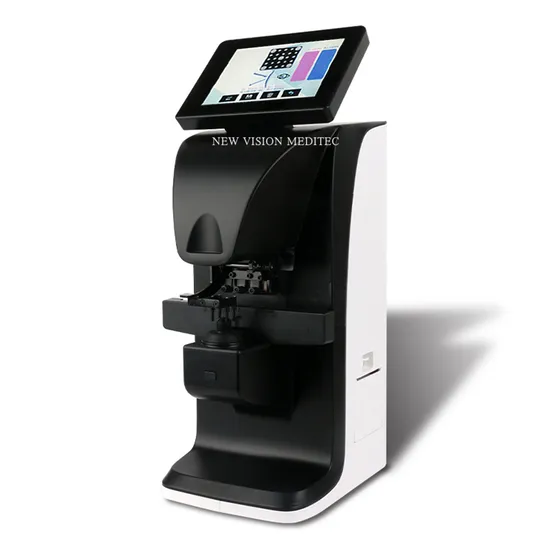

High-Definition Colorful Touch-Screen Auto Lensmeter
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
ALM-903 Plus
Usage
Optical
Certification
ISO9001
Lensmeter
Digital
Screen
5.7 Inch TFT
Blue and UV Light
Yes
Printer
57mm Thermal Printer
Transport Package
Standard Export Package
Specification
CE, FDA, ISO, SGS
Trademark
new vision
Origin
Jiangsu
HS Code
9018500000
Production Capacity
5000 PCS/ Month
Product Description
Digital/ Auto LensmeterModel: ALM-903 Plus
Screen Size: 5.7 inch
High-Definition Colorful Touch-screen
5.7 inch TFT screen, clear marking convenient operation of touch screen.
UV and Blue Light Measurement
More Efficient and Accurate Testing
The step of Lens degree values supports to 0.01D inminimum, Blue and UV lights transmission rate can be tested.
Adjustable Screen
Screen can be adjusted different position as neededwhich is good for operations in standup and seating gesture.
CE & US FDA Approved
| Sphere measurement range | -25.00Ds ~+25.00 00DS |
| Steps | 0.01DS/0.12DS/0.25DS |
| Cylinder measurement range | 0.00~+/-10.00DC |
| Measurement mode | Mix/+/- |
| Steps | 0.01DC10.12DC10.25DC |
| Cylinder axis measurement range | 0~180 |
| Steps | 1 |
| ADD measurement range | -10DS~+10DS |
| Steps | 0.01DS/0.12DS/0.25DS |
| Prism measurement range | 0 ~10 |
| Measurement mode | X-Y rectangular coordinates. P-B polar coordinates |
| Steps | 0.01_10.1210.25 |
| Measurable lens diameter | Φ20~100mm |
| Measurable lens center thickness | <=20mm |
| PD measurement range | 42mm-82mm |
| Blue and UV lights transmission rate | |
| Vertex power measure wavelength 525nm, UV measure wavelength:400nm | |
| Power supply | DC 12V 3A |
| Rated power | 36W |
| Display | 5.7"capacitive touch screen |
| Printer | 57mm Thermal printer |
