Product Description

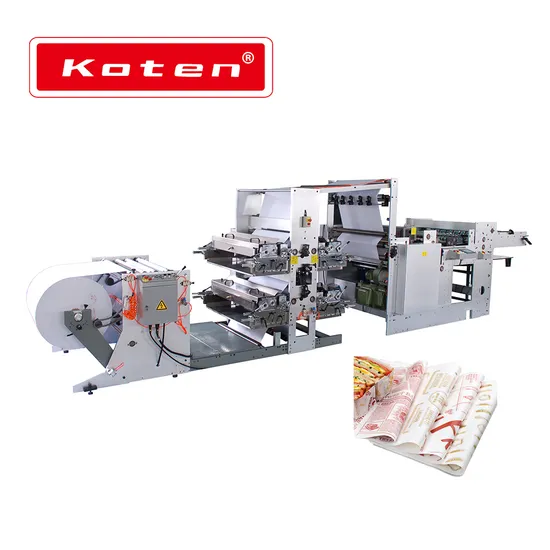

Automatic Paper Flexo Printing Machine for Hamburger Sandwich Fast Food Packaging Bag Paper,Exercise Book Flexographic Printing Ruling with Cross Cutting YXR2-1020ES Flexo Printing Machine is our company's new generation printing machine which had replaced traditional brass circle ruling. Printing and cutting are divided into two separate parts to eliminate the vibration caused during the cutting process that affects the printing quality. Thus, high speed and high quality are guarantee. Some of its features are single arm electric paper rack, tension auto-controlling system, deviation-rectifying device, can print colors on double sides, auto-feed paper, print, cut, receive and arrange paper. Can have steel wire installation, auto-fill ink pump and motor hoist on the roller hanger in accordance with customers needs. It is an ideal printing machine for medium and high-grade notebooks, letters and other paper products. Fix the reel on the unwind station and spread it out to insert through drive paper roller. After printing tower had print out the lines, the reel will be sent to cutting station to cut into single sheet papers whose length is preset. The cut papers will then go through deep pile deposit station and finally sent to deep pile delivery station. Thereafter, it will do clapping, vibrating and arranging papers on all corners before it descends automatically. When it's fully loaded, the machine will stop running and ring bell to alert operator. Do inching till it reaches the lowest position for paper pile to leave piling table by using paper cart to pull out.

Model	YXR2-1020ES
Web width	580-1020mm
Web diameter	Max. 1300mm.
Web core diameter	76mm(3inch)
Cutting precision	0.2mm
Printing precision	0.2mm
Printing and slitting length	260-670mm
Printing speed	3-350m/min
Reel paper requirement	40-120gsm
Max. Pile Height	1500mm
General power	15KW
Weight: approx.	7500kgs

Name	Quantity	Brand
Main Motor	1	China Famous Brand
Main Motor Controller	1	American A/B Powor Flex70
Contactor	all
Belt Conveyor	all	RAPPLON(Switzerland)
Synchronous cog belt (timing belt)	all	Germany
Reduction gearbox	8	China Famous Brand
Height Switch (limit switches)		OMRON(Japan)
Photoelectric switch		OMRON(Japan)
Proximity Switch		OMRON(Japan)
