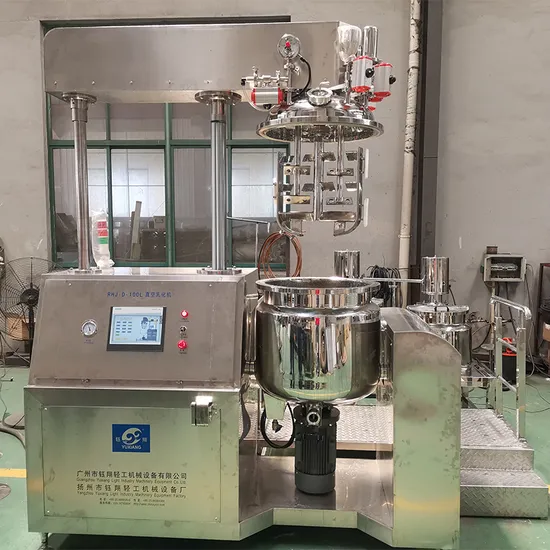

Cosmetic Equipment Oil Blending Cream Make Production Chemical Equipment Vacuum Emulsifier Homogenizer Mixing Machine

Product Description

Cosmetic Equipment Oil Blending Cream Make Production Chemical Equipment Vacuum Emulsifier Homogenizer Mixing Machine
Product Description It's used for produce the cream, lotion, paste, ointment, paste, conditioner, etc. Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect;
Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;
Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During few production, it can exert homogenizing effect fully;
Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high-capability cut,rubbing,centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation.
Customer can choose frequency conversion timing homogenizer and highest rotate speed is 4500 r/min.
Technical Parameter:

Model	Main pot	Water pot	Oil pot	Main pot power		Hydraulic System	Vacuum pump power(Kw)
	Volume(L)			Wall scraping	Homogenizer
RHJ-5L	5L			0.18	1.1	0.75	0.55
RHJ-10L	10L	7	5	0.37	1.1	0.75	0.75
RHJ-20L	20L	14	10	0.75	1.5	0.75	0.75
RHJ-50L	50L	35	25	1.1	2.2	1.5	1.5
RHJ-100L	100L	70	50	1.5	3	1.5	1.5
RHJ-200L	200L	140	100	2.2	4	1.5	2.2
RHJ-300L	300L	210	150	3	5.5	1.5	2.2
RHJ-500L	500L	350	250	4	7.5	1.5	2.2
RHJ-1000L	1000L	700	500	5.5	11	2.2	3

Factory Pictures
Certificates
Customer Pictures
Services1. 24 hours hotline service for cream mixer, cream mixing tank, cream mixing machine.
2.The machine is guaranteed for one year and lifetime maintenance
3.Provide complete independent design, manufacturing, installation and other integrated services

5.Professional R& D team, independent r & d production
FAQ
1 .Q Do you accept a special order?
A: Yes ,we do ; We can manufacture all kinds of chemical equipments according to your technical drawings;
2.Q: Can you give us a quotation right now?
A: Please give us the detail of the technical so we will design and quotate for you as soon as possible;
3.Q: Do you have one in stock?
A:Sorry. We don't. All products are manufactured according to customer's requirement;
4.Q: Can you make a design for us?
A:Yes We can What we supply is not only product but also solution and design;
5.Q:Can your engineer come to our place for installation guides?
A:Yes, we can we will provide a video and document for installation;If you still have problems we will send our engineer oversea for installation guide Options of lab vacuum homogenizer mixer for making toothpaste
Fixed cover with bolts or welding to save budget Different slow mixing part designs available Frame type slow agitator for oil pre-mixer Extra openings on the vertical type inline homogenizer for adding hot and cold ingredients and powders Delta or Siemens PLC for automation of mixing, dispersing, emulsifying, homogenizing, vacuum, transferring, heating and cooling etc Mettler-Toledo load cells Flow meter automation for feeding liquid oil and water Pressure vessel design for different steam pressure SIP is available upon request Different power supply acceptable Applications of production vacuum homogenizing mixer
Cosmetics & Toiletries: cream, lotion, wax, mascara, gel, toothpaste Pharmaceuticals: ointment, dental composite, syrup, injection Food: mayonnaise, dressing, jam, butter, margarine, wasabi Chemicals: polyester, synthetic fiber, shoe cream
