High-Power Metal Plate Fiber Laser Cutting Machine 6000W 12000W 20000W

Product Description

Laser Cutting Machines of a Great Variety--HSG Laser HSG Laser can serve global users with 20+ kinds of machines that are suitable for most materials needing to be cut, including sheet metal laser cutting machine, sheet & tube laser cutting machine, tube metal laser cutting machine, bending machine and welding machine. The following is the introduction of Heavy Duty Tube Laser Cutting Machine:

High Tech Enterprise

HSG Laser, dated back to 2006, as a hi-tech enterprise focusing on R&D, production and sales of laser
equipment, is dedicated to serve global customers with metal forming solutions. HSG Laser has applied for
366 patents in total.


Serve 100+ Countries and Regions

HSG Laser has built 4 standardized manufacturing plants in China, 13 branches/subsidiaries/sub-subsidiaries
and 30+ service outlets overseas. Now, we have a total staffff of 1700+ employees, incl. 200+ R&D personnel
and can produce 8000 sets each year by right of 960000m2 production area.


Professional Research Department Team

Our R&D team has developed 3D fifive-axis bevel cutting, P40 (40000W) autofocus cutting head,double digital
chucks, Alpha T and HSG-X9000 bus system.


Large Variety in Fiber Laser Machines

HSG Laser can serve global users with 30+ kinds of machines , including sheet metal laser cutting machine,
sheet & tube laser cutting machine, tube metal laser cutting machine, bending machine, welding machine and
automation equipment.
Product Description

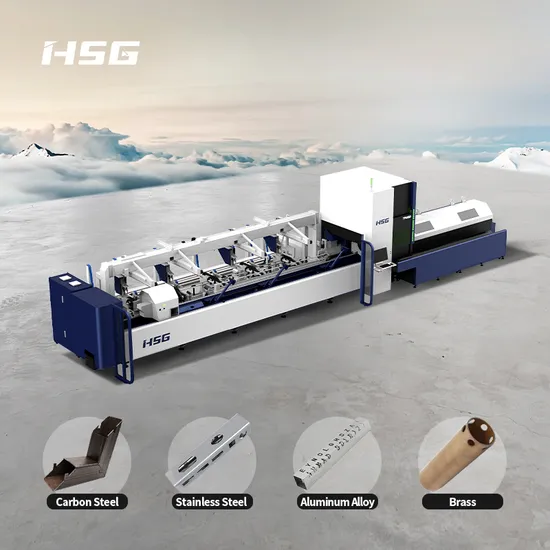

Four-chuck Heavy-duty Tube Fiber Laser Cutting Machine

< Cut with Short Tailings >
Four chucks can cut tubes with short tailings and improve material utilization by reverse cutting mode.

< Four Chucks Structure >
HSG Laser released the first generation of HSG four-chuck heavy-duty tube laser cutting machine,
laying a groundwork for cutting heavy, large and long tube stably.
1.Heavy-duty pneumatic chucks for stable clamping
2.Maximum clamping diameter: 660mm (Round Tube)
3.Single tube bearing: 3000Kg
< Automatic Loading and Unloading System >
The system is easy for heavy-duty tube loading and unloading without shutdown waiting.
The system can decrease unproductive time and avoid accident probabilities of artificial loading and unloading.
Our Advantages

HSG-X Bus Control System

HSG-X control system is bus-based and developed by HSG Laser. With intelligent and easy-to-operate service, it can offer users effective solutions to address problems of difficult operation, low efficiency and high costs.
1.21.5-inch touch screen with concise interface
2.Monitor core components in real time and give early alarm
3.Detect tube deviation if needed
4.Click to create processing report

Tube Splicing Technology
The operating control offers 50+ kinds of tube splicing patterns, for convenience of subsequent welding, such as splicing of male and female head of square tube, 90° arc splicing, splicing of round tube tee, splicing of cut-through holes, 45° splicing of hexagon, splicing of angle iron and channel steel, etc.

Power-off Cutting Restart Technology
Foreign-imported servo motor contains an absolute encoder to offer power-off cutting restart function, namely, users only need to click to restart the cutting and power failure will not be worried.

Specification

Applications
HSG Fiber Laser Cutting Machines are widely used in Manufacture Billboard, Signs, Advertising, Signage, Metal Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts Nameplates, etc.

Technical Parameter

Model	TL360	TL660
Laser Power	6000-12000W
X/Y-axis Positioning Accuracy	±0.05mm/m	±0.1mm/m
Cutting Capacity of Round Tube	Φ40-360mm	Φ80-660mm
Cutting Capacity of Square Tube	40*40-250*250mm	80*80-450*450mm
Weight of Single Tube	1000kg	3000kg
* The price of machine with different power is also different. Please contact the customer service staff for consultation.

Sample Display

Office Area

Visit & Exhibition

Certifications

Test & Packing
QUALITY TESTING EQUIPMENT

Tri-linear coordinates measuring instrument, Machine body leveller, Collimator, Precise height measuring instrument,
Guide rails straightness meter, Laser interferometer.


HIGH-STANDARD PACKAGE

To keep entire machine safe during long-distance sea transport, we adopt high-standard package, incl. aluminum foil, metal framework, fumigation wooden case, anti-rust oil+oilpaper, moisture-barrier bag, waterproof plastic fifilm and fifilling foam.





PROFESSIONAL AFTER-SALES SERVICE

Δ One-year Warranty
All unit components are warranted for 1-year, except items listed in the Exclusions section below.
Our after-sales engineer or local agent will supply new or remanufactured component of equal or better quality to replace the failed one.

Δ Exclusions
Unit components subjected to normal wear during the Warranty Period are not covered by warranty, including:

1. Nozzle 2. Protective lens 3. Ceramic ring

Machine breakdown caused by part handling/misuse or corrosion due to exposure to caustic materials, voids the warranty.

Component failure caused by customer misuse/abuse of the unit (e.g. using incompatible materials or wrong axial position settings), voids the
warranty.
