Chemical Fiber Filament Stable Sizing Machine

Product Description

Product Description

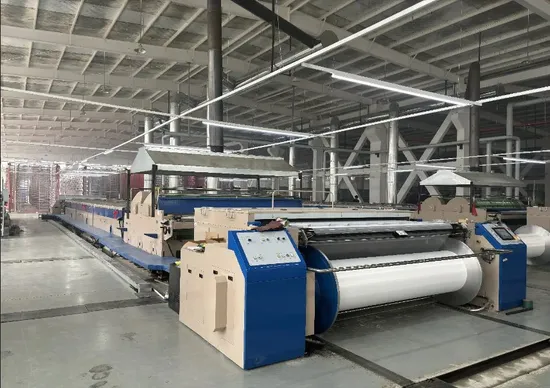

This series of machines is suitable for various chemical fber flaments, elastic fibers, composite fibers, and other raw materials to beevenly arranged, sized, dried, and shaped before being wound onto the pulp shaft; it has the advantages of high speed, stable sizingrate, constant tension, and precise contro, makina it an ideal eauipment for shzina chemical iber filaments; it is the preparationequipment for the beaming machine.
Important parts
Winding Part
*Using hard aluminum oxide rollers.
*Equipped with the yarn sheet compression device to ensure that the yarns remain tensioned during shaft replacement.
*Equipped with tape paper adhesive device.
*Pneumatic up/down shaft and clapper flip/flop system with air pressure sensor to ensure safety.
*Equipped with manual telescopic reed left and right movement and electric reel expansion deviceEquipped with retractable reed swinging device and yarn lifting device.
*Equipped with electrostatic eliminators.
Drying part
*Adopting a two-stage reverse hot air circulation structure chamber and five drying cylinders.
*Each drying cylinder and chamber is equipped with independent temperature measurement control system.
*Tension sensor control system is adopted to ensure stable tension during operation.
*Equipped with oiling device after drying filament, the speed of oling roller is steplessly adjustable withina certain range.
*Cooling system for dry yarn can be selected as needed. (customer option)
Sizing part
*Using advanced double frequency conversion motor drive system, the tension of the yarn sheet between the sizing roller and the yarn-feeding roller can be adjusted as needed.
*Adopting pneumatic immersion grouting method and specially designed grouting roller, ensuringuniform grouting at both ends and in the middle of the yarn sheet.
*Equipped with a lifting and locking system for the grouting roller and a lifting system for the soakingroller, it makes cleaning and replacing the roller more convenient, and can also protect the rubber rollerduring long-temm shutdown.
*Equipped with double-layer heat preservation slurry drum and slurry heating control circulation device.
*Equipped with automatic slumy spraying device (optional).
*The newly designed slurry supply tank can effectively prevent the slurry from splashing.
*Equipped with reed up/down/left/right movement mechanism, fully extending the service life of the reed.
Condensation part
*6 wet layered rods (condensation rods) are used to protect the slumy film.
*The water chiller (optional) can be provided to achieve better condensation effect.
*Equipped with lifting device of layered reed frame.

Hot Air Circulation Chamber
*The drying mode of the chamber can be steam drying, natural gas drying, or thermaloil drying.
*A control system is used to automatically adjust the steam / natural gas / thermal oilvolume based on the temperature of the chamber set for hot air circulation, in order tomaintain the temperature of the chamber and achieve uniform drying of the yarns.
*Adopting a hot air circulation heating method opposite to the direction of yarnmovement and an efficient heat exchanger, driven by frequency conversion, greatlyimproves drying efficiency.

Product Parameters
Sizing machine

Max speed		500m/min
Width		1800mm	2000mm	2200mm	2400mm	2800mm	3200mm
Unwinding Part	Power	7.5kw			11kw
	Warp Shaft diameter	ø800mm ø900mm ø1000mm
Number of sizing roots		2000 2200 2400 2600 3200 3600
Sizing method		The Compression Mode
Diameter of dipping roller		ø200mm
Sizing roller diameter		ø240mm

Squeeze roller diameter		ø220mm
Pulping method/Max. load		The Grouting Method for Uniform Pressure/Max.1500kg
Drying method		Steam/ Natural gas/ Heat transfer oil
Electric heating power(optional)		75kw			110kw
Drying room length		6m+6m
Drying cylinder diameter		ø800mm
Number of drying cylinders		5 or 7
Temperature regulating system		Automatic Temperture Control System

After oiling system		The Roller-sticker Oiling (Waxing) Method
Cooling system		Active Cooling System with Airflow Circulation
Winding tension control mode		AC Vector Tension Feedback Control Method
Winding tension control range		40N~750N
Pulp shaft loading and unloading system		Pneumatic device loading and unloading
Winding shaft diameter		ø800mm~ø1000mm
Display system		Touch-operated Displays
Electrical equippment capacity		80KVA(155KVA)			80KVA(190KVA)

Steam assembly		700kg/h			800kg/h
Steam volume		600kg/h			700kg/h
