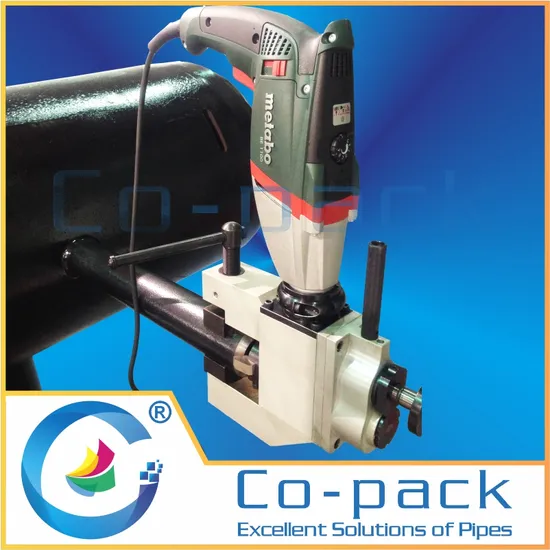

ISC-II Auto Feed Electric Boiler Tube Pipe Beveller

Product Description

ISC-II C-II Auto Feed Pipe Beveling Machine
Overview
C-II auto feed pipe facing machine was designed for the end beveling of narrow working site and small diameter pipe. OD mounted on the pipe, one clamping block just fit one size pipe, secured clamping automatic feeding, easy to operate. It was widely used in water wall, fins, boiler economizer, superheater, reheater, power plants and other industries, the single pipe and exhaust pipe facing and beveling.
Features
Cold cutting, without influence the material of the pipe
OD mounted, self centering, secured clamping, easy to operate
Aluminum body is light, suitable for working aloft.
5 models, working range: 8-108mm
Optional special tool bit use for pipe inner thread
Driven motor: Pneumatic and Electric
Capability
Pipe beveling
Pipe facing
Beveling Shape
The key words of this product: Pipe beveling machine Tube beveling machine
Model and Specification

Model	Range	Pipe Thickness	Rotating	Tool Stroke	Body Thickness
	OD mm	mm	rpm	mm	mm
ISC-53-II	Φ14-53	≤12	0-58	0-20	54
ISC-76-II	Φ25-76	≤12	0-54	0-20	58

Above parameters just for reference only, not acceptance criteria.
Clamping Block

No. Model

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

ISC-53-2

Φ14

Φ16

Φ18

Φ20

Φ22

Φ25.4

Φ28

Φ32

Φ38

Φ42

Φ45

Φ48

Φ51

Φ53

ISC-76-2

Φ25.4

Φ28

Φ32

Φ38

Φ42

Φ45

Φ51

Φ54

Φ57

Φ60

Φ63

Φ68

Φ70

Φ73

Φ76

One clamping block just fit one size pipe
Standard with four diameter clamping block, more specifications please inquire
Power Supplies
METABO motor
Electric requirement: 220-230V 1PH 50/60HZ
Power: 1.3KW
Tooling
Integrated Tool
Can be reused by grinding
Material: M42 and M35
Standard supply
Inserted Tool
Insert same, different angle holder
Holder material: HSS
Insert material: Carbide
