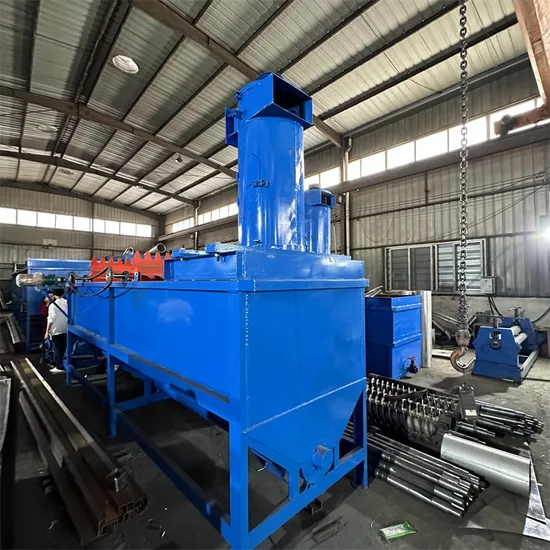

PE Plastic Pelletizing System with Enhanced Washing Line for Recycling Granules

Product Description

State-of-the-Art Plastic Recycling Washing Line: Engineered by Wenzhou Wandun Machinery Co., Ltd., this PE Plastic Pelletizing System with Enhanced Washing Line for Recycling Granules is meticulously designed to deliver unparalleled efficiency in the granulating process. Experience superior performance, exceptional reliability, and cutting-edge technology, all tailored to meet your advanced plastic recycling needs.
Product Description
Discover the ultimate solution for plastic recycling with Kitech machinery's innovative washing system. This state-of-the-art, modular design is specifically crafted to manage rigid plastics and bottles, processing a wide array of plastics including PE, LDPE, HDPE, PC, PS, and ABS. It guarantees maximum efficiency and optimal soft recycling, making it an indispensable component of the recycling series.
Kitech delivers tailored module combinations to cater to your unique requirements and material conditions. Capable of managing diverse raw materials, our production lines span from 300 to 10,000 Kg, offering options from economical to premium configurations to perfectly align with your production demands.


Introduction:

Type	WT500	WT100	WT2000	WT3000
Capacity(kg/h)	400-500	800-1000	1600-2000	2500-300
Dimension(L*W*H)	35*10*5	50*12*6	70*12*6	120*20*6
Steam consumption(kg/h)	0-150	0-200	0-300	0-600
Chemical consumption(kg/h)	0-3	0-5	0-10	0-20
Energy consumption(kwh)	175	198	306	550
instalation power(kwh)	210	330	498	810
*** (person /shift)	3-5	3-8	3-10	3-12

Main Technical Variables:
Belt conveyor:
Engineered for heavy-duty use, featuring a robust gear motor;
Designed with side walls to prevent material spillage;
Crusher:
Meticulously designed with sharp, powerful blades;
Features an enclosed cutting chamber to contain materials;
Knives are externally adjustable for user convenience;
Shredder:
Equipped with a specially designed hopper to prevent material ejection;
Incorporates four-way rotating knives with unique holders;
Extremely durable pedestal bearing housings;
Bearing pedestal designs are externally mounted;
Screw conveyor:
Constructed with stainless steel screws offering wear-resistance;
Features a triple sealing system with an external bearing design;
Washing tank:
Integrates a double station discharge valve at the bottom;
Variable speed control facilitated via an inverter;
Durable washing unit, allowing separation of materials with varying densities;
Friction washer:
Rotor and blades made from wear-resistant steel;
Rotor undergoes dynamic balance treatment, achieving precision of ±3-5g;
Proactively washes materials to protect downstream units;
Centrifugal dryer:
Rotor is precisely balanced, ensuring an accuracy of ±3-5g;
Mild circular screen crafted in a unique four-piece polygon shape;
Durable stainless steel welded construction for the washer/dryer housing;
Squeezing dryer:
Built with a heavy-duty shaft and blade;
Incorporates double hydraulic press units;
Features motorized screw squeezing;
Hot air pipe dryer:
Pipeline constructed with precision stainless steel welding;
All material-contacting parts are made from stainless steel;
Hot air drying system ensures efficient drying;
Storage buffer:
Directly integrates with the pelletizing process;
Offers a large storage capacity for smooth, uninterrupted operation;
Electrical cabinet
Fitted with international brand low voltage components;
Includes a double circuit safety relay for enhanced protection;
Features an intelligent, modular PLC controlling system for seamless operation.
Q1. What are your terms of packing?
A: Our standard packaging involves placing the machine on a protective pallet and securely wrapping it with plastic film, ensuring its safety during transportation.
For exports to European countries, we ensure the wooden boxes are meticulously fumigated, guaranteeing safe and compliant transport. Our packaging process is precise, utilizing high-quality PE film. Additionally, we offer bespoke packing solutions, perfectly tailored to meet the unique needs and preferences of our esteemed customers.
We are fully equipped and prepared to accommodate any special requests, ensuring we meet your specific needs and preferences with exceptional attention to detail.
Q2. What are your payment terms?
A: Our payment terms are designed for clarity and ease: a 30% deposit via T/T is required, with the remaining 70% due before delivery. To maintain transparency, we provide detailed photos of the products and their packaging prior to final payment.
Q3. What are your delivery terms?
A: We offer a range of flexible delivery terms including EXW, FOB, CFR, and CIF to perfectly align with your logistical requirements.
Q4. What is your delivery timeframe?
A: Typically, our delivery timeframe ranges from 30 to 60 days following receipt of your advance payment. The exact timeframe may vary depending on the specific items and quantities in your order.
Our delivery times are adaptable and may vary based on the specific details and specifications of your order, ensuring flexibility and precision.
Q5. Do you test all your products before delivery?
A: Absolutely, we conduct a thorough 100% test on all our products to ensure they meet our stringent quality standards before delivery.
Q6: How do you ensure long-term and positive business relationships?
A: 1. We consistently deliver superior quality products at competitive prices, maximizing value for our customers.
2. We engage every customer with the utmost respect, fostering genuine and enduring business relationships and friendships, irrespective of their background or origin.
