Automatic Cabbage Carrot Vegetables Shredder Kitchen Waste Textile Waste Recycling Machine

Product Description

Product Description Product Introduction

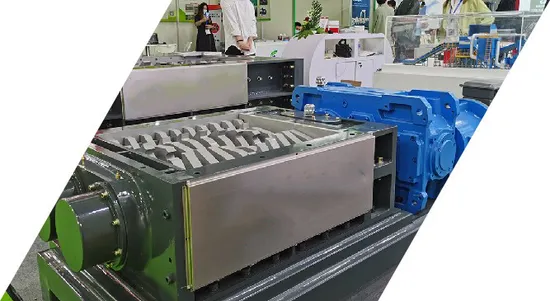

The double-shaft shredder is a widely used and relatively extensive shredding machine, suitable for the preliminary processing of many materials. Based on the nature of the material and the required output, the power required can be initially estimated. Generally, there are single motors and dual motors. Single motor is suitable for fragile materials with low power requirements. Dual motors are equipped with dual reducers, and ZSY or planetary reducers can be selected according to needs.
It is characterized by fast discharging and high efficiency, which can meet general crushing needs.
HLV has designed different ranges of double-shaft shredders for common applications with different components (reducers, blade sets, etc.) to guarantee a wide range of material adaptability. At the same time, we have the ability to custom-built machines to suit specific material and input/output requirements.

Which Materials can be Processed?
Product Highlights
1. heavy knife, high crushing efficiency, Blades, shafts, and chambers adopt Stainless steel material designed for batteries ,which is more resistant to hydrochloric acid.
2. frame plate thick, resistant to high torque, very strong.
3. microcomputer (PLC) automatic control, set to start, stop, reverse and overload automatic reverse control.
4. The device has a low speed, high torque, low noise, dust features can meet environmental standards.
5. easy to adjust, low maintenance, economical and durable.
6. thickness and number of claw cutter knife can be replaced according to different materials.
Technical Data Technical Parameters

Machine Name And Type	DATA
HLZ-800 Double shaft shredder	Model: 800 Capacity(TON/HOUR) 2 - 5 Feeding size (mm) ≤800 Maximum Cutting Thickness: / Output size(mm) : <20mm Main power(kw) : 30+30KW Shredding Chamber: 800x700mm Blade Size: 380mmx20mm x40pcs Blade Procession: Hard Alloy & Heat Treated

Item	Name	QTY	Detail/Origin/Brand	Remark
1	Feeding Hopper	1set	HANLV	Stainless Steel, 5mm
2	Shredding Chamber	1set	HANLV	800X700mm, Stainless Steel
3	Motor & Reducer	2sets	China Good Brand	GUOMAO 30+ 30KW
4	Coupling	2sets	HANLV	45#
5	Shafts	2pcs	HANLV	Stainless Iron
6	Moving Blades	40pcs	HANLV	380x20mm Stainless Steel Heat Treated
7	Ring washers	40pcs	HANLV	20mm Stainless Steel Heat Treated
8	Fixed Blades	40pcs	HANLV	15mm Stainless Steel Heat Treated
9	Bearings	4pcs	NSK	IMPORTED
10	Down Hopper	1set	HANLV	Stainless Steel, 5mm
11	Electronic Control	1set	China Good Brand	CHNT
12	Support Frame	1set	HANLV	10X10cm, 5mm thickness Tubes, Carbon Steel
13	Oil Seal	4sets	/	Rubber

Product Details
Discharge Effect
FAQ
Q:How long is your delivery time?
A:Generally, it will be about 35-40 days after deposit, which also will affected by the actual situation of the project.
Q:What Will We Do If We Have Problems in Machine Working After We Buy the Machine?
A: HANLV has people special for after-sale service,if customers outside China have problems when machine working,just feel free to send us the picture or video to show us,we will give you solutions in 24hours.
Q:Could We Visit Your Factory and Test the Machine?
A: We warmly welcome you to visit our factory anytime,and we are very glad to test our machine with your raw material.
Customer Feedback

Company Profile Company Profile
Hanlv is a new type of enterprise integrating R&D, manufacturing, sales and service of solid waste treatment equipment. In particular, it has extensive experience in metal recycling and plastic&wood &Tire crushing.
Hanlv has many years of experience in the solid waste recycling industry, and its equipment is sold in many countries around the world. Reliable equipment quality is our philosophy.
What do customers need?----This question has always kept us going.
Project Case
