Xilinx Zynq Ultrascale Soc Zynq7000 Xc7z020 Xc7z010 Xc7z007 for Fpga Board

Product Description

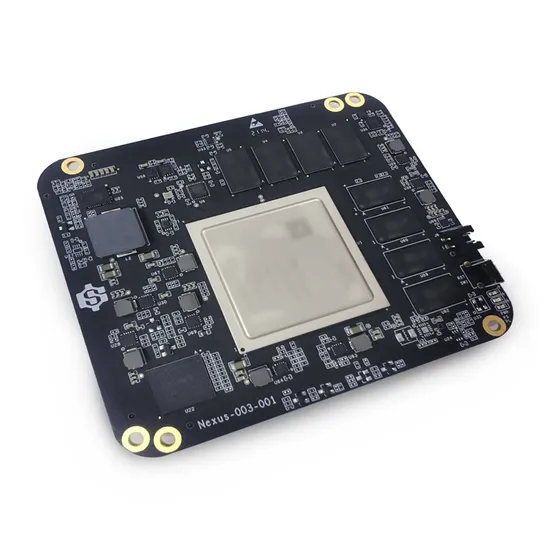

Products Description NEXUS Series FPGA Controller Based on the FPGA technology of Xilinx Zynq UltraScale+ MPSoC, Nexus adopts Xilinx Zynq 7000 UltraScale+ and integrates a multi-core ARM Cortex processor, abundant FPGA resources, and high-speed SerDes lanes. Nexus can simultaneously act as a controller, an algorithm accelerator, and a high-speed digital signal processor. SmartGiant also provides customization services to help customers free their hardware, logic, firmware, and software tasks, as well as ODM services from R&D, validation and mass production. NEXUS Specification

Dimensions (L x W)	105 mm ×90 mm
Weight	50g (128g with heat sink assembled)
Operating Temperature	0°C to 50°C
Storage Temperature	-40°C to 70°C
Humidity	0% to 80% RH, non-condensing
MPSoC	Zynq®UltraScale+™ XCZU7EG
ARM	Quad ARM® Cortex™-A53, 1.5 GHz
SDRAM	PS-DDR4, 2 GB, 64-bit data bus width, 2400 Mbps data rate PL-DDR4, 4 GB, 64-bit data bus width, 2400 Mbps data rate
eMMC	16 GB
Power Supply Voltage	5 VDC from Baseboard
Power Dissipation	< 40 W
Thermal Management Strategy	Heat sink together with a fan
USB 2.0 PHY (ULPI)	2 Can form up to 2 USB 3.0 with PS-GTR
GbE PHY (RGMII)	10/100/1000 BASE-T
BTB Connector (Baseboard)	300 pins x3 (PN: SEAF-50-05.0-L-06-1-A-K, Samtec Inc.)
PL SerDes	24-lane TX/RX, 16.3 Gbps
ADC Analog Input Port	Built in MPSoC
LED Indicators	Green: Power On, Yellow: PS status , Blue: PL status
Programmable I/Os	248
I/O Types	LVCMOS18, LVCMOS33, LVDS

Product Details Company Introduction
Why Choose Us Our Advantages 1. Global Leading Customers: Amazon, Lenovo, Facebook, HUAWEI, VIVO, etc. 2. Mature used in 3C automatic production line and automatic production equipment, such as mobile phone, computer, tablet, mobile phone, etc. 3. 15+ years in AI vision inspection & automated testing.
4. Certificate: ISO-14001,ISO-27001,CE,CCC, 41 Copyrights, 32 Patents.
5. More than $30 million Revenue in recent 3 years.
6. 7X24 hours Aftersales service and technical support.
7. Plant Area: 4800 Square meter
R&D Lab & Automatic Assembly Line Exhibition Packaging & Shipping FAQ Q: What's included in the shipping fee?
A: The shipping fee includes the costs for shipping and customs declaration fees. For one order, there may be a one-time customs
declaration fee of $50. Please contact us for more details.
Q: The ordering system limits the order to 1pc of sample. Why can't I place an order for 2 pcs or more?
A: This is because the final charge involves calculation of the freight and customs fees of the goods. For a single order, the customs declaration fee is $50. The shipping cost is based on the packaging volume or weight of the goods. For orders of 2 pcs or more, please contact us for more details.
Q: What is the delivery time?
A: It depends on your order quantity and the season you place an order. For a small quantity, shipment takes about 7-15 days. For a large quantity, shipment takes about 30 days.
Q: What is the payment method?
A: T/T, L/C, Western Union, PayPal. Specific payment terms are negotiable.
Q: What is the shipping method?
A: By sea, by air, or by express delivery (EMS, UPS, DHL, TNT, FedEx, etc.).
Please confirm with us before placing an order.
