Cci Brand Best Selling 3015 4000*2000 6000*2500 6000W Carbon Plate Laser Cutter

Product Description

Metal Processing Machine Category (Photo & Linkage)

1st Line	Enclosed A Type Fiber Laser Cutting Machine	Enclosed B Type Fiber Laser Cutting Machine	Enclosed C Type Fiber Laser Cutting Machine	Automatic Tube Fiber Laser Cutting Machine
2nd Line	C Type Metal Sheet Fiber Laser Cutting Machine	E Type Metal Sheet Fiber Laser Cutting Machine	E Type Metal Sheet and Metal Tube Fiber Laser Cutting Machine	C Type Metal Sheet and Metal Tube Fiber Laser Cutting Machine
3rd Line	Metal and Nonmetal CO2 Laser Cutting Machine	Fiber Laser Cleaning Machine	Fiber Laser Welding Machine	Fiber Laser Marking Machine

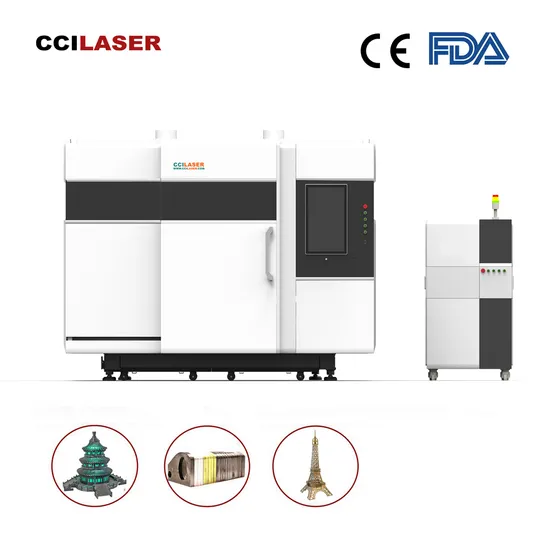

CCILASER Fiber Laser Cutting Machine
Application:
Fiber laser Cutting Machine is mainly for fast cutting with high precision of carbon steel, stainless steel, galvanized steel, titanium alloy, gold, silver, aluminum, brass and other material.
Applicable Industries:
Widely applied in thin metal sheets cutting, such as hardware, electronic parts and components, instrument, precision mechanic, glasses, jewelry, sheet metal processing, etc.
Technical Parameters

Model	FLC-3015E	FLC-4015E	FLC-4020E	FLC-6115E	FLC-6125E
Working Area	3048*1524mm	4000*1524mm	4000*2000mm	6100*1524mm	6100*2500mm
Laser Output Power	3000W/2000W/1500W/1000W/500W
Positioning accuracy	±0.05mm
Repositioning accuracy	±0.03mm
Max. linkage speed	100m/min
Max. acceleration	1G

Main Features: 1. Cuts up to 5'x10' metal sheets
2. Energy efficient: Lowest running cost for cutting metal
3. Capacitive Auto-height adjusting/ manual cutting head
4. Closed Japan Yaskawa servo motors YYC rack for rapid precise cutting
5. Different power draw (1000w 2000w 30000w 4000w)
6. Computer design suit for repeat cutting
7. Programmable cutting assist gas solenoid
8. 1070nm fiber laser has 3x to 10x the absorption efficiency of CO2 for cutting metal
9. Laser is contained inside a fiber optic cable (no mirrors to adjust)
10. 10x smaller spot sizes than 10.6um CO2 type lasers
11. Solid state laser lasts over 50,000hrs
12. Various power options from 500W to 3kW (default 1000W)
13. Easily cuts through 6mm carbon steel, 3mm stainless, 2mm aluminum (500w).
12mm carbon steel, 6mm stainless steel, 5mm aluminum (1000w)
Company and Products Advantage:
Delivery time is guaranteed
15000m3 laser equipment processing workshop.
100-150 laser cutting machines are inspected and accepted every month.
Reasonable production management process to ensure the machine quality.
110 Professional and technical workers.
Every front-line production worker has undergone strict pre-job training.
One worker only completes one process of product production to ensure the production of high-quality products. Each process is inspected to ensure the accumulative accuracy of the product.
Supports ODM and OEM.
12 technical R&D persons.
We provide different solutions for different industries, so as to meet the technical requirements of different industries as much as possible.
Perfect after-sales service system.
35 after-sales service personnel with more than ten years working experience.
2-3 engineers are responsible for one area to ensure the professional and timely debugging work, so that users can put into production as soon as possible. Every year we hold a quality journey, visit new and old users everywhere, help them to check the machine and listen to the actual needs of customers, so as to do a good job of market research for our product technology upgrade.
Complete pre-sale service network.
86 pre-sales engineers are distributed in all corners of the world, providing different solutions for users in all walks of life.

Processing Effects
Main Components
Professional Machine lathe Technic. According to the standard of large machine, the processing procedure as follows:
a. relief annealing/ vibration aging treatment;
b. rough machining;
c. fine machining.
It eliminates the stress of welding and machining greatly. It can maintain high strength and high precision.
RAYTOOLS Fiber Laser Cutting Head
1. The cutting speed is fast and the cutting quality is excellent. The speed of 6mm stainless steel is as high as 0.6m/min, and the perforation time of 16mm carbon steel is less than 4 seconds.
2. Intelligent and flexible automatic focusing function. Users only need to set the value, and the laser head can automatically adjust the focus quickly and accurately. The servo motor does not lose focus, while the focusing speed is up to 100mm/s, and the repeatability is up to 0.001mm.
3. The protective lens is added to the collimator lens, which can effectively prevent the damage caused by dust falling into the collimator lens;
4. Drawer type lens holder is adopted to make the replacement of protective lens, collimator lens and focusing lens quick and easy;
5. The nozzle assembly has a built-in annular air cooling and side blowing structure, which is conducive to the cutting of high-reflection materials and the sputtering of thick plate explosion-proof holes;
6. Both the collimator lens and the focusing lens have a water-cooled structure, so that they can withstand a maximum power of 6KW;
7. Both collimation and focusing can use composite lenses to obtain the best optical quality and cutting effect.
YASKAWA Servo Motor and Drive
1. The fastest amplifier response in the industry, greatly shortening the setting time
2. Enhanced vibration suppression function.
By adding and improving the vibration suppression function, the following performance can be improved and the setting time can be shortened.
In addition, it can reduce the vibration sound during driving and the vibration of the front end of the machine when it is stopped.
3. Improve mechanical performance by combining inertia motors.
CCILASER Factory
CCILASER is headquartered in Jinan City, China. It is a world-renowned laser equipment company and a high tech enterprises integrating R&D, production and sales.
We are adhering to the tenet of "Quality first, customer first" and continues to grow. Main products include fiber laser cutting machine, plasma cutting machine, laser marking machine, laser engraving machine, laser welding machine and laser cleaning machine and etc.
Our company has passed ISO and CE international quality management system certificates, and has obtained FDA certification for the US market. We have our independent export rights.Machines are exported to more than 100 countries and regions.
Wish cooperating with you to create a better future!
CCILASER Production and Quality Inspection
CCILASER Qualification Certification CCILASR all machines come with 3 years warranty, and we have the certifications of ISO9001, BV, CE, ect.
Exporting Package and Delivery
The normal package is wooden pallet and wooden case. The wooden pallet and wooden box will be fumigated.
If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Customer Care Pre-sale service
The CCILASER pre-sales consulting team will wholeheartedly provide you with laser machinery consulting, solutions and other services.
After-sales service
35 professional technical support staff will be on standby 7*24 hours, all year round, fully guaranteeing the worry-free use of your products and the stable operation of your business.
CCILASER Product quality has been well received by the international market.
CCILASER products have been exported to more than 160 countries and regions and have been well received by users.
We establish offices in the United States, Brazil, India, Russia, Spain, Turkey, Thailand, Malaysia and other countries.
In order to adapt to the continuous expansion of the company's business and further improve the quality of after-sales service, we sincerely invite local distributors to join our sales and service system, and work together to support perfect sales and after service for users. To be continued..
