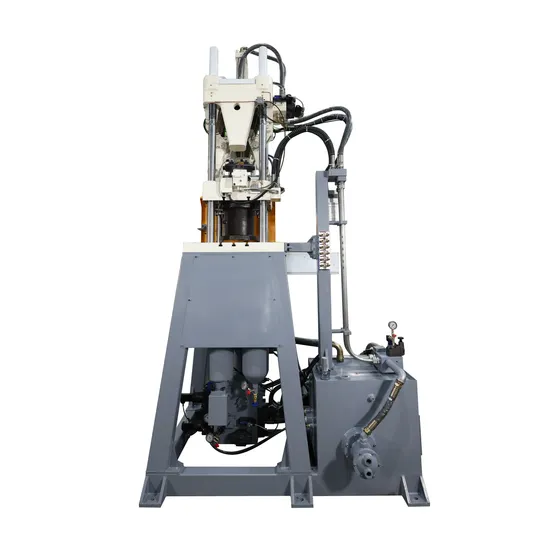

Shimi Dl100ton Zinc Zamac Aluminum Vertical Die Casting Machine

Product Description

Product Description
The following characteristics are added to the horizontal cold chamber die casting machine: 1. The main difference in use: the vertical machine is more suitable for die-casting some insert die-casting products (easy to operate) and products with high requirements for product density and dynamic balance. 2. Specific vertical injection structure, the mold is installed horizontally, and the die-casting product is filled horizontally, compared with the bedroom machine, the alloy solution is not affected by gravity, and the product density will be more uniform; 3. The injection chamber is placed vertically, after the molten metal is poured into the injection chamber, the gas and slag are on the upper surface of the molten metal, and the gas inside the mold and the scum in the molten metal are easier to be discharged in the process of injection filling; Finished pictures

Product Parameters

ITEM	DL100T
Clamping Force	1000KN
Clamping stroke	300mm
Ejecting Force	70KN
Ejection Stroke	60mm
Mold thickness	130-430mm
Platen Size (W*H)	610*610mm
Tie bar spacing(W*H)	400*400mm
Tie bar Diameter	70mm
Injection Stroke	250mm
Plunger diameter	40/50/60mm
Shot Weight/Zinc	0.5/0.8/1.1Kg
Motor Power	11BKW
System operating pressure	11Mpa
Oil Tank Capacity	300L

Core Competitiveness

1.Better quality and good marketing team
2.Production
3.Testing equipment
4.layout of sales outlets
5.rapid response to after-sales service

Company Profile

Guangdong Shimi Intelligent Equipment Co., Ltd. is a manufacturing enterprise specializing in R&D, manufacturing, sales and export of cold chamber, hot chamber, vertical die-casting machines and aluminum, magnesium, copper, lead, zinc alloy die-casting machines and semi-solid die-casting machines and extruders, which are widely used in new energy, aviation, auto parts, kitchenware, clothing, lighting, bathroom, hardware and other industries.
Shimi, has the production of large-scale die-casting machine R & D and manufacturing capabilities, from raw materials, machining, welding, assembly, commissioning, to final inspection, has a complete production and inspection system, each die-casting machine in the final inspection time before leaving the factory more than 72 hours, the annual production capacity of more than 1800 units, the total production value of nearly 200 million, in Zhejiang, Guangdong, Fujian, Hebei and other domestic and overseas regions have a huge customer base, the total number of market sales in the forefront of the industry.
Certifications

Cooperative Customers

Packaging & Shipping

Each of our machines has a final test time over 72 hours before leaving the factoryEnsure that every detail is done to the extremeOn the premise of ensuring the stability and durability of the machineCreate more efficient and energy-saving products
