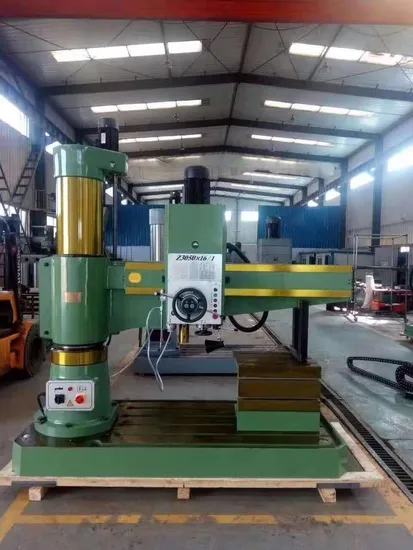

Radial Arm Drill Machine Z3050X16/1 Metal Vertical Hydraulic 50mm Radial Drilling Machine
| US$6,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z3050X16/1
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
Precision
Certification
GS, CE, ISO 9001
Condition
New
Hydraulic
Drilling,Tapping
Specification
25, 32
Origin
China
HS Code
84592900
Production Capacity
600PCS/Year
Product Description
Characteristics:Hydraulic transmission
Hydraulic clamping
Hydraulic pre-selection
electricity machinery double insurance
Specifications:
| SPECIFICATIONS | Z3050×16/1 |
| Max.drilling dia (mm) | 50 |
| Distance from spindle nose to table surface(mm) | 320-1240 |
| Distance between spindle axis and column surface (mm) | 350-1640 |
| Spindle travel (mm) | 315 |
| Spindle cone(MT) | 5 |
| Spindle speeds range (r.p.m) | 25-2000 |
| Spindle speed step | 16 |
| Spindle feeding range(r.p.m) | 0.04-3.2 |
| Spindle feeding step | 16 |
| Rocker rotary angle (°) | ±90° |
| Main motor power (kw) | 4 |
| Movements motor power (kw) | 1.5 |
| Weight (kg) | 3500 |
| Overall dimensions (mm) | 2500×1060×2800 |
