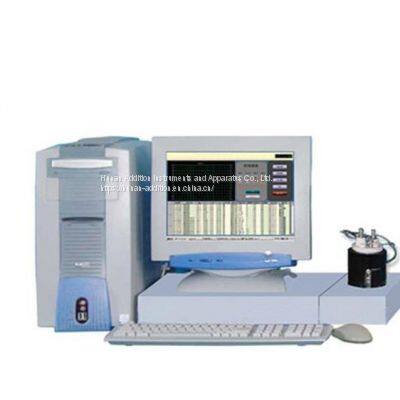

Automatic Crude Oil Salt Content Tester ASTM D3230
Model:JF6532
Product Introduction
This instrument is the latest product using microcoulometric analysis technology and computer-controlled microcoulometric titration. It has the characteristics of reliable performance, simple operation, good stability, and easy installation. It is suitable for the determination of salt content in oil and chemical products. The instrument can also be used for the determination of salt content in heavy oil, residual oil, chemical products, various industrial water and discharge water. It is also suitable for the determination of inorganic chloride ions in the above-mentioned various samples. The sensitivity is 0.1ngNaCl/uL, and the results are in line with international standards. It is an ideal instrument for controlling salt content in the current electrical desalination process.
The instrument uses the Windows operating system as the working platform, and its friendly user interface makes the operation more convenient and fast for the analyst. In the process of system analysis, the operating conditions, analysis parameters and analysis results are directly displayed on the display, and the parameters and results can be automatically saved and printed according to needs, so as to be recalled and archived in the future.
Technical Parameter
1. Applicable standards: ASTM D3230, GB/T6532
2. Titration method: Coulometric titration
3. Measuring range: 0.2～10000mgNaCl/ul
4. Detection sensitivity: 0.1mgNaCl/L
5. Measurement time: ≤5 minutes per sample (excluding sample processing)
6. End-point detection method: automatic identification of the instrument through the indication-reference electrode
7. Display unit: ngNaCl/ul
8. Titration tank capacity: 145ml
9. Sampling volume: 1g±0.2g
10. Working power supply: AC220,240V/50,60Hz
11. Power of the whole machine: 500W
Main Feature
1. Computer control, with reliable performance, easy operation, good stability, easy installation, etc.
2. Using the Windows operating system as the working platform, the operation is more convenient and fast
3. During the analysis process, the operating conditions, analysis parameters and analysis results are directly displayed on the display
4. Parameters and results can be automatically saved and printed as needed, so as to be recalled and archived in the future
5. Equipped with a special constant temperature water bath to heat the samples in the centrifuge tube
6. Equipped with a special centrifuge, adjustable from 0 to 4000rpm, to separate oil and water
7. Equipped with a special vibrator to mix the sample and solvent in the centrifuge tube
