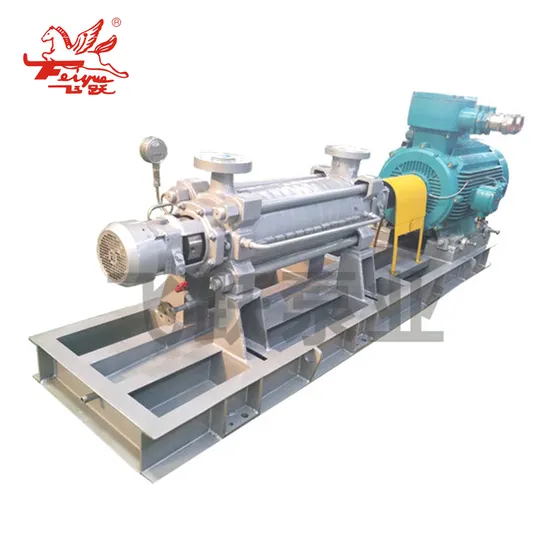

Fmc Horizontal Multistage Balance Centrifugal Pump, High Lift Head Multistage Pump, Water Pump

Product Description

Product Description FMC Horizontal Multistage Balance Centrifugal Pump, High Lift Head Multistage Pump, Water Pump Product Description
Conform to design standard of GB/15656
Flow range: 3~900m3/h
Lift range: ~1800m Design pressure: ~15MPa
Application temperature: -20~200ºC
Application field: This series of pump is mainly used in industries of oil refinery, petrochemical engineering, coal chemical industry, power plant, environmental protection engineering, wastewater treatment, cement plant etc.
Suitable for transporting all kinds of neutral or corrosive medium such as clean, particle free chemical medium, oil, wastewater. Summary
Type BB4(FMC) multi - grade pump is a horizontal single - abso bing multi - section centrifuge one which to transfer clean water(impurity less than 1%) and the other corrosive liquid whose physic features is similar to clean water according to different raw materials. D DL type pump made by common materials is only to transfer the medias whose temp. No - ore than 20ºC, and one by special materials, the neutral or little corrosive liquid, or clean or little particle's one in the line of chemical, pharmaceutical, petrol, metallurgy, and environment, etc.
Chart

1	Axle	2	Bearing body parts(a)	3	Adjust the shalt sleeve	4	Seal sleeves	5	Suction segment	6	Seal flush piping
7	In the middle	8	Primary guide vane	9	Leveateodtegibe	10	Spit out section	11	Balance disc component	12	Pump cover
13	Pading imngmechanica seal	14	Packing gland/seal	15	Bearing body parts (b)	16	Jilt hydrosphere

Product Parameters Performance parameters of the table
