EPA/Euro 5 Fast Swing Speed 12rmp 1.6ton Mini Crawler Excavator 1600kg Mini Hightop Excavator Ht16
| US$3,600.00-5,200.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HT16
Type
Crawler Excavator
Usage
Mini Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Bucket Capacity
0.025cbm/120kg
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Transport Package
Wood
Specification
1600KG
Trademark
xingtan
Origin
China
HS Code
8429521200
Production Capacity
1500set/Year
Product Description

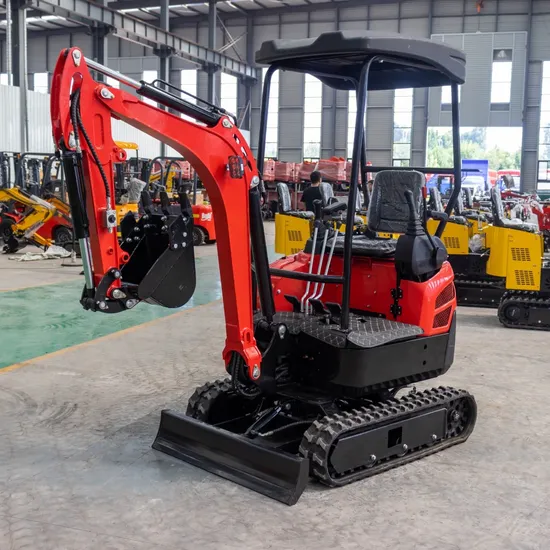

Description HT16 Series Mini Excavator is a compact and flexible machine that can operate in narrow spaces with excellent performance. It can be widely used in municipal engineering, garden construction and other fields. It is easy to operate and has low maintenance costs.
1) Simple structure and compact design ,easy in installation and maintation.2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.3) Give full consideration to reduce the working oil consumption, to obtain maximum efficiency in all kinds of work site operation.4) Auger, grab, hydraulic hammer, narrow bucket can be installed on this excavator, efficient and wide-range use.
5)can install with EPA engine , Euro 5 engine,Control Cabin.
Parameters
| Mini Excavator HT16 | |
| Emission Standard | Tier 5/ Stage V |
| Engine | Kubota |
| Model | D722 |
| Power /Rotation speed | 10.2kw(15HP)2500rpm |
| Number of cylinder | 3 |
| Maximum Travel speed | 4km/h |
| Overall dimension (L*W*H) | 2450mm*940mm*2150mm |
| Chassis width | 1000mm |
| Axle base(Track length on ground) | 1300mm |
| Track width | 200mm |
| Min.Ground clearance | 380mm |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.025m³ |
| Swing speed | 9 rpm |
| Max. Grade ability | 35° |
| Maximum Bucket digging force | 18KN |
| Maximum Arm digging force | 11KN |
| Hydraulic system pressure | 18.2Mpa |
| Machine weight | 1350kg |
| MAIN DEMENSIONS | |
| Maximum Digging height | 2640mm |
| Maximum Dumping height | 2100mm |
| Maximum Digging depth | 1800mm |
| Maximum Vertical digging depth | 2230mm |
| Maximum Digging radius | 2350mm |
| Minimum swing radius | 1190mm |
