High Demand Depth Ruler Gear Head Milling and Drilling Machine
| US$970.00-1,260.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
AM-7045
Type
Tool Milling Machine
Object
Tool
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE
Condition
New
Max Drilling Capacity
45mm
Max Face Milling Capacity
80mm
Diameter of Vertical Milling
28mm
Spindle Stroke
120mm
Spindle Taper
Mt4
Main Motor
1100/1500 W
Transport Package
Export Wooden Box
Specification
860*740*1160mm
Trademark
OEM
Origin
Shanghai, China
Product Description

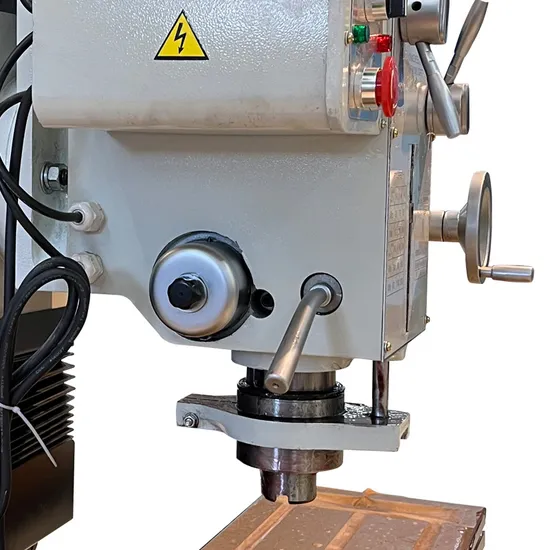

Product Features. Gear Head Auto Feed Drilling & Milling Machine
. Hardened Gear Large Driven Torque
. High Strength Square Column
. Easy Read Depth Ruler
. High Precision Grinding Low Noise
. Low Noise
Product Parameter
| Model | AM-7016 | AM-7025 | AM-7032 | AM-7045 |
| Max.Drilling Capacity (mm) | 16 | 25 | 31.5 | 45 |
| Max.Face Milling Capacity (mm) | 40 | 63 | 80 | 80 |
| Diameter of Vertical Milling (mm) | 10 | 13 | 22 | 28 |
| Spindle travel (mm) | 80 | 110 | 130 | 120 |
| Distance spindle axis to column generator line (mm) | 182 | 240 | 202 | 260 |
| Max.Distance spindle nose to table (mm) | 360 | 510 | 460 | 475 |
| Spindle speeds range (r/min) | 320-3300 | 290-2150 | 100-2150 | 95-1600 |
| Spindle taper | MT2 | MT3 | MT3 | MT4 |
| Spindle speeds series | 12 | 5 | 12 | 6 |
| Dimension of worktable surface (mm) | 420*152 | 555*195 | 730*210 | 730*210 |
| Main Motor (w) | 550 | 750 | Single-phase 1100 Three-phase 1500 | Single-phase 1100 Three-phase 1500 |
| Net weight (G.W/N.W) | 80/75 | 190/160 | 285/250 | 318/278 |
| Packing dimension (cm) | 88*62*26.5 | 87*67*102 | 86*74*124 | 86*74*124 |
FAQ
1.What models do you have?
There are many types of drilling machines, and we can recommend them according to your needs.
The best-selling series is Bench Drilling Machine,Bench Auto Feed Drilling Machine and Auto Feed Drilling & Milling Machine.
2.Do you have CE certification?
Yes, we have CE . The quality of the machine is guaranteed.
3.Can you accept OEM orders?
Of course, we can accept OEM with your trademark printed on the machine and pack it according to your design.
4.What products does your company provide?
Main products is riveting machine,tapping machine,drilling machine,self-clinching fasteners and so on.
