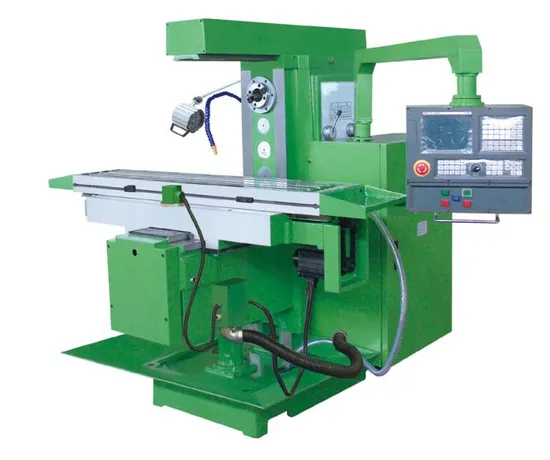

CNC Horizontal Knee-Type Milling Machine Xlk6036c/Xlk6036cl/Xlk6030

Product Description

CNC Horizontal Knee-Type Milling Machine XLK6036C/XLK6036CL/XLK6030

Specification:

Model No.	XLK6036C	XLK6036CL	XLK6030
Item No.
Specifications
Table size	1325x360 mm	1600x360 mm	1370x300 mm
Table travel(X/Y/Z)	1100/320/450 mm	1300/320/450 mm	820/300/400 mm
Table rapid feed speed	4000/4000/3000 mm/min	4000/4000/3000 mm/min	4000/4000/3000 mm/min
T slot ( No./wicth/pitch)	3/18/70 mm	3/18/70 mm	3/14/80 mm
Spindle
Spindle hole taper	ISO 50(7:24)	ISO 50(7:24)	ISO 40(7:24)
Distance between spindle and table surface	10-460 mm	10-460 mm	75-475 mm
Distance from spindle and table surface	175 mm	175 mm	155 mm
Spindle speed range	12 step 60-1800 r/min	12 step 60-1800 r/min	12 step 35-150 r/min
Arm travel	500 mm	500 mm	-
Main motor power	5.5 kw	5.5 kw	3 kw
Torque of X/Y/Z axis AC servo motor	10/10/18 N.m	10/10/18 N.m	10/10/15 N.m
Dimension of package
Overall size(LxWxH)	2400x2000x1870 mm	2800x2000x1870 mm	1850x1760x1800 mm
Net weight	2465 kg	2510 kg	1850 kg

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
