Z3032X10 Small Radial Drilling Machine
| US$1,300.00-1,700.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z3032x10
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Drilling Capacity
32
Spindle Travel (mm)
120
Spindle Taper(Mt)
4
Spindl Speeds Range(r.p.m)
108\162\262\398\665\1000
Spindle Speed Steps
6
Spindle Feeding Range(mm/R)
0.10,;0.16.0.32
Spindle Feeding Steps
3
Head Stock Travel(mm)
550/650
Main Motor Power(Kw)
1.5-2.2
Net Weight (Kg)
800/850
Transport Package
Wood Case
Specification
CE ISO9001
Trademark
WELLON
Origin
China
HS Code
8459290000
Production Capacity
300PCS/Month
Product Description

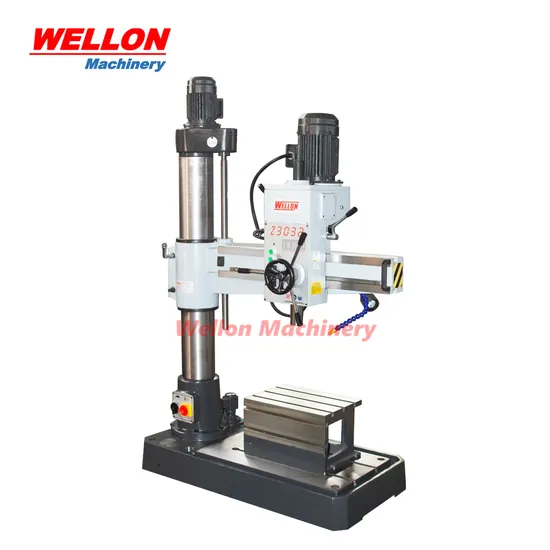

Products Description:Z3032x10 small radial drilling machine
Mechanical transmission
Mechanical clamping
Mechanical speed change
Automatic rocker arm lifting
| Model | Z3032x10 |
| Max.drilling dia (mm) | 32 |
| Distance from spindle nose to table surface (mm) | 220-1000 |
| Distance from spindle axis to column surface (mm) | 260-680/780 |
| Spindle travel (mm) | 120 |
| Spindle taper(MT) | 4 |
| Spindle speeds range(r.p.m) | 108\162\262\398\665\1000 |
| Spindle speed steps | 6 |
| Spindle feeding range(mm/r) | 0.10, 0.16.0.32 |
| Spindle feeding steps | 3 |
| Head stock travel (mm) | 550/650 |
| Main motor power (kw) | 1.5-2.2 |
| Net weight (kg) | 800/850 |
| Overall dimensions (mm) | 1235×600×1780 |
Standard accessories:
Box type worktable
Drill chuck
Taper sleeve
Wrench
Optional accessories:
Spindle guard
Machine vise
