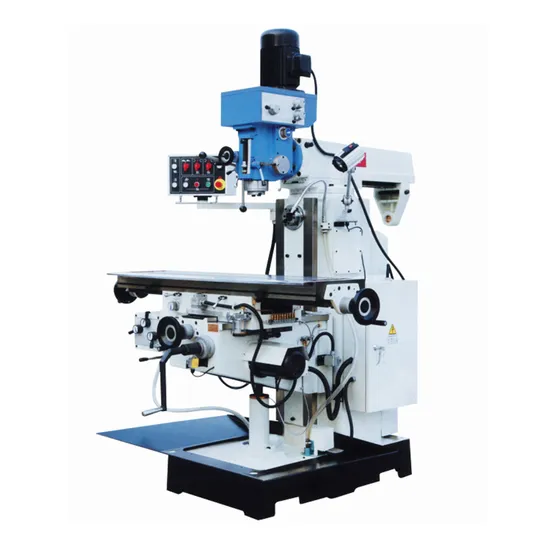

Advanced Automatic Universal Metal Vertical Turret Milling Machine for Precision Engineering

Product Description

Products Description Feature Milling, drilling, tapping, boring, reaming Head swivels or tilts Micro feed precision Heavy-duty tapered roller bearing spindle Positive spindle lock Adjustable gibs on table Geared drive lower noise Accurate position, strong rigidity, strong cutting power STANDARD ACCESSORIES face mill cutter with handle drill chunk taper shaft of drill chunk 4pcs internal six-side spanner slanting block, sleeve or dull spanner OPTIONAL ACCESSORIES vice,mill chunk,digital indicator,work-table automatic feeder device,cooling system,CE standard scheme,support tablenew mini drilling & milling machine DMLTM-40 Specifcation

MODEL			DML6350A(C)	DML6350Z	DML6350Z	XZ6350ZB
Max. drilling dia (mm)			50; 30	50; 30	50; 30	50; 30
Spindle taper			M.T.4; R8; ISO30	M.T.4; R8; ISO30	M.T.4; R8; ISO40	M.T.4; R8; ISO40
Max. vertical milling dia (mm)			25	25	25	25
Max. boring dia (mm)			120	120	120	120
Max. tapping dia (mm)			M16	M16	M16	M14
Distance. spindle to talbe surface (mm)			100-480	100-490	90-370	100-430
Spindle speeds rage (r.p.m.) (steps)	Vertical	115-1750 (8)	115-1500 (8)	60-1500 (8)	38-1300 (8)
		Horizontal	40-1300 (12)	40-1300 (12)	40-1300 (12)	90-2000 (12)
Spindle travel (mm)			120	120	120	120
Automatic spindle feeds (mm/r)				0.08 0.15 0.25	0.08 0.15 0.25	0.08 0.15 0.25
Table size (mm)			1120 x 280; 1000 x 280	1120 x 280; 1000 x 280	1250 x 320	1120 x 260
Table travel (mm)			600 x 260	600 x 260	600 x 300 x 280	600 x 300 x 280
Overall dimensions (mm)			1400 x 1630 x 2350	1400 x 1630 x 2650	1700 x 1480 x 2150	1520 x 1285 x 2150
Motor (kw)	Vertical	0.85	1.5	1.5	1.5
		Horizontal	1.5/2.2	2.2	2.2	2.2
N.W./G/W. (kg)			1200/1350	1200/1350	1450/1550	1300/1400

Company Profile SJR Machinery Co., Ltd. , was founded in 1984, which is the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. Our company specializes in the manufacture and import/export of brand new industrial machinery and tools. We are capable of producing more than 80 types of machines.Sincerely welcoming you to contact us for more information, we look forward to becoming your supplier in the near future. Order Evaluation Exhibition Customer Photos Certifications FAQ 1. How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you . 2. What is your payment terms ? A: 30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation. 3: Where is our factory located? How can I visit there? A : Our factory is located in No. 52 Linyin Road, Economic and Technological Development Zone, Nantong City, Jiangsu Province ,226001 China. You are warmly welcomed to visit us. 4. What is your delivery time ? The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not. 5. Can you send the service engineer to our company ? We have engineers stationed in Canada, Egypt, and Algeria. The after-sales service system is very perfect. Automatic Universal Metal Vertical Turret Head Milling Machine
