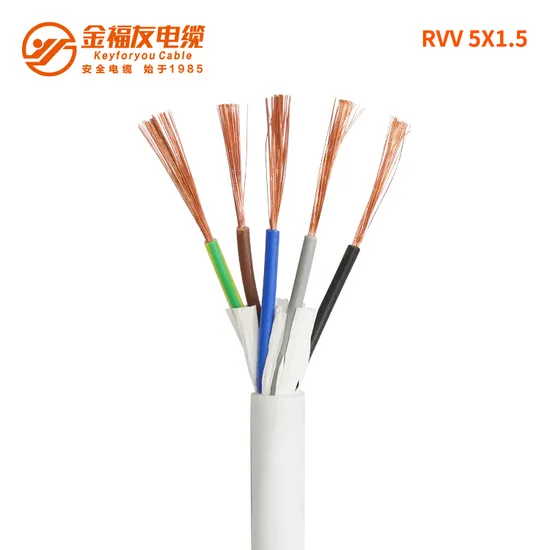

PVC Insulated White Sheathed Industrial Electrical Equipment Household Flexible Cable

Product Description

Basic Info.
Model NO.	60227 IEC 52/53(RVV)	Insulation Material	PVC
Sheath Material	PVC	Material Shape	Round
Wire Core Material	Copper	Certification	ISO
Brand	JINFUYOU	Customization	Available
Trademark	JINFUYOU	Implementation Standard	GB/T 5023.5-2008/IEC 60227-5:2003
Minimum Use Temperature	-15°C	Maximum Use Temperature	70°C
Voltage Class	300/500V	Origin	China
Cable Specifications	Multi-specification
Product Description
model	60227 IEC 52(RVV)
voltage class	300/500V
Implementation standard	GB/T 5023.5-2008/IEC 60227-5:2003
minimum use temperature	-15°C
maximum use temperature	70°C
Laying Environment	Ambient temperature not lower than 0°C when laying
transport storage	1. Prohibit damage and take precautions.
	2. Strictly prohibit the upper pressure of heavy objects.
	3. No sharp objects on the periphery or top.

60227 Composite data for flexible cords of type IEC 53 (RVV)
Number of conductor cores and nominal cross-sectional area/mm²	Insulation thickness/ mm	Sheath thickness/ mm	Average external dimensions/mm		Minimum insulation resistance at 70 °C/ (MΩ .km)
			Upper limit	Lower limit
2x0.75	0.6	0.8	5.7 or 3.7x6.0	7.2 or 4.5x7.2	0.011
2x1	0.6	0.8	5.9 or 3.9x6. 2	7.5 or 4.7x7.5	0.01
2x1.5	0.7	0.8	6.8	8.6	0.01
2x2.5	0.8	1	8.4	10.6	0.009
3x0.75	0.6	0.8	6	7.6	0.011
3x1	0.6	0.8	6.3	8	0. 010
3x1.5	0.7	0.9	7.4	9.4	0.01
3x2.5	0.8	1.1	9.2	11.4	0.009
4x0.75	0.6	0.8	6.6	8.3	0.011
4X1	0.6	0.9	7.1	9	0.01
4x1.5	0.7	1.0	8.4	10.5	0.01
4x2.5	0.8	1.1	10.1	12. 5	0.009
5x0.75	0.6	0.9	7.4	9.3	0.011
5x1	0.6	0.9	7.8	9.8	0.01
5x1.5	0.7	1.1	9.3	11. 6	0.01
5x2.5	0.8	1.2	11.2	13.9	0.009
Note: Average outside dimensions are calculated according to 1EC 60719.

Company Introduction
Jinfuyou Cable Group has been committed to the systematic research and development, design, manufacturing, marketing and service of wire and cable products, and is one of the top wire and cable manufacturers in China. Manufacturing marketing and service, is one of the top wire and cable manufacturers in China in terms of comprehensive strength. The company was founded on February 6, 1985, with two production bases in South China and North China. The company was established in February 6, 1985, with two major production bases in South China and North China, covering a total area of more than 300 acres, fully equipped, headquartered in Foshan National High-tech Development Zone, now the group's annual production capacity is close to ten billion. The products cover 35KV and below all kinds of wires and cables with tens of thousands of specifications.
Since its inception, the company has always adhered to the talent-based, integrity-based business principles, bringing together the industry's elite, advanced management concepts, to provide a full range of cable solutions for each partner, so that each partner in the fierce market competition with a stronger overall competitiveness, to achieve rapid and stable development.
Mission: Committed to the most efficient energy transmission
Vision: To be the most influential cable professional R&D manufacturer and service provider.
Jinfuyou Cable
Guaranteeing the safety of electricity for every customer
Make it your only choice!

Fully equipped, with an annual output value of over $700 million
Dozens of wire diameter cable production lines

Workshop

Stick to the quality route
and let our products penetrate into thousands of households! Complete qualifications, product quality is guaranteed

Our company specializes in the production of
35kV and below plastic insulated power cables and rubber insulated wires and cables.
Overhead insulated cables, overhead bare conductors, mineral fireproof cables, aluminum alloy cables, fire-resistant cables, control cables, computer cables, inverter cables, prefabricated branch cables, home furnishing cloth wire, and other wire and cable products.
A gentle reminder:
Please contact customer service before you order, or are not shipped.
The above prices are for reference only, real-time prices, please contact customer service, real-time online, fast response.
Shipping Time
For in-stock products,
orders paid before 16:00 will be shipped on the same day.
orders paid after 16:00 will be shipped on the next day,
(please communicate with customer service for customized cable shipment time)
Shipping Logistics
Different areas, different logistics.
Customer service will arrange the appropriate logistics
according to your location.
There are special logistics requirements,
please communicate with customer service.
Receiving Reminder
Please make sure that the goods are intact before signing the receipt
if you find out the lack of goods, less goods in the process of
inspecting the goods.
Please contact our customer service staff at the first time.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but customers need to pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance,70% T/T balance before shipment.
If you have another question, please feel free to contact us !
