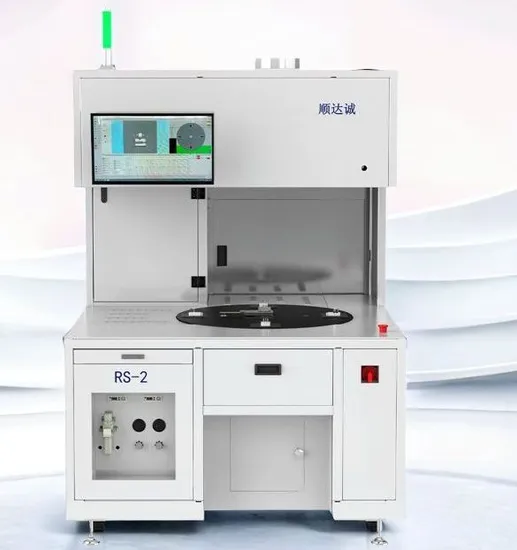

Easy-Programming Offline Turntable Selective Wave Soldering Machine for Small Size PCB (RS-D2)

Product Description

Product Description1.Off-line 2-in-1/ 4-in-1/ 6-in-1 solder pots turntable selective wave soldering machine, with dual stations working at the same time,
2.Suitable for mass production of a single product (small size) with high quality requirements.
2.High soldering quality and fast production speed.
3.Set soldering parameters for each solder joint and controlled by computer .
4.Simple operation, and easy learning, the procedure is traceable.
5.Certification: CE,ISO.
6.Control method: Semi-Automatic.
7.Application: Electrical & Electronics Industry/Communication Industry.
Product advantagee 1. This equipment includes manual feeding station, automatic spraying station, preheating station, and automatic soldering station.
2. The rosin flux nozzle can move along the X,Y,Z axis.
3. There is a soldering pot, which can move along the XYZ axis, and an N2 protection device is installed in the soldering furnace.
4. Multiple stations can work at the same time to improve work efficiency.
Effect of soldering
Customised soldering parameters for each soldering joint.
Full soldering joints, consistent quality.
No bridging and no Void.
Nozzles can also be customized for your PCB. Product Parameters

nspecifications	Parameter
Size	1350L*1400W*1900H (mm)
Operating height	750±25mm
Weight	Approx.1350KG
Product parameter
size	Max:100(L)*100(W)(mm)
Top component height	Max100mm
Bottom component height	Max10mm
Weight	Max3Kg
loader system
Loader method	Manual
Selective spray system
Spray movement mode	Flux nozzle movement in XY axis
Spray movement precision	0.1mm
Selective Soldering System
Soldering pots quantity	2 Set
Soldering movement mode	Soldering pot movement in XYZ axis
Soldering precision	0.1mm
N2 protection system
N2 protection mode	Nozzle and solder pot
N2 consumption	1.5M3/h*2
Unloader system
Unloader system	Mechanical arm(Customer supplied)
Rotary system
Method	Splitter + brake motor
Product jog	Can be changed
Control system
Control mode	PC+ motion control card
Programming method	Image, GERBER or CAD file importing
PCB Process parameter	Setting, save , open in the PC screen
Other	PCB counting, message, alarm can be read in the PC
Option
Sweep gun

Certifications
Certification &Qualification including CE,FCC,Rohs,ISO9001.More than 50 product patents.
Packaging & Shipping1.Standard Wooden Case with Vacuum Package
Shipping Way:
· By air, for small package,
· By sea, for large package and quantity;
· Other ways as customer requested.
2.Delivery Time:
· With 40 Working Days.(Customized type)
3.Delivery date:
· About 5 days after receipt of payment.
After Sales Service
After sales support 24-hour online one-on-one guidance,
engineers can go to the customer's factory for offline face-to-face guidance.
FAQ
Q : What size PCB can I put in this selective wave soldering?
A : Max:100(L)*100(W)(mm) is our standard machine size, we can also provide customised machine enlargement service.
Q : What kind of products is Selective Wave Soldering suitable for?
A : High-precision circuitboards that cannotbe soldered by wavesoldering and cannotbe soldered by manual soldering.
Q : What are the advantages of your company?
A : Our company is a high-tech enterprise specialising in selective wave soldering, integrating R&D, production and sales. With 24 years of technical experience. Because of the speciality so professional.
