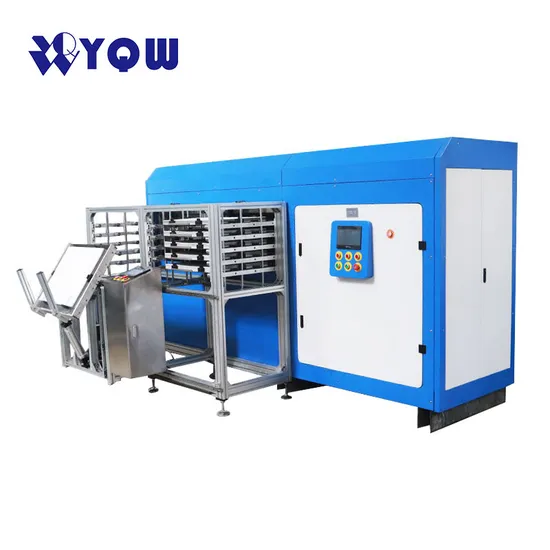

High Speed Automatic PVC Card Fusing Machine for Card Making/PCB Circuit Board Laminator/Cutting Mat Lamination Machine/Plastic Card Laminating Machines

Product Description

Product Description
Production:
The new generation plastic laminating machine achieves much more functions with automatic transfer material, time and labor saving, safe and standard production , maximize benefit,etc. This laminator adopts the newest automatic transferring technology, which makes material transferring more easily,fast and safely, also saves worker labor intensity efficiently.
Features:
This plastic card lamination machine breaks with traditional designs and realizes automatic material transfer instead of manual transfer, achieving safe and high efficiency working. automatic PLC loader/unloader
This laminator machine can be used for laminating various kinds of RFID inlay ,plastic cards such as payment card, membership card, gift card, vip card, credit card,attendance card. it adopt PLC industrial automation control system & touch-screen display which are imported, convenient for operation. With its powerful functions, the software can keep records of several lamination parameters automatically. Trouble alarm and keep record functions make the machine convenient.
This laminator can be used for fusing all kind s of pc pvc sheet with both heating and cooling tower are made of aluminum alloy, realizing fast heating & cooling functions with non- rusty. The luxury energy saving model with sealing state design for heating insulation saves energy.
The machine with 5/7/10 working daylights with much higher productivity.
With automatic frequency conversion function, high quality imported VFD matched with variable fluid technique, the precision up to ±0.05Mpa
With automatic pusher type patented technology, materials can be transferred easily and automatically.

Technical Parameter:

Cooling Method	Water Cooling
Heating Method	Electric Heating (oil heating is optional)
Pressure Stages	Heating 12 stages/cooling 5 stages
Pressure Precision	+/-0.05 MPa
Temperature Precision	0-200ºC +/-1(ºC)
Laminating Plate Smoothness	+/-0.05mm
Laminating Plate	Aluminum Alloy
Hydraulic Cylinder	Single/four
Pressure	0-20Mpa
Laminating Platen Size	580mm×680mm (600x750mm is optional)
Opening	5/7/10
Electric	380V ,50-60HZ, 40KW( 5 daylights) 380V ,50-60HZ, 56KW( 7 daylights) 380V ,50-60HZ, 75KW( 10 daylights)
Dimension	Dimension of laminator L3080mm*W980mm*H1700mm ,dimension of auto loader/unloader:L2000mm*W1200mm*H1500mm
Neight Weight	3300KGS

Detailed Photos

Company Profile
YQW since 2019, which specializes in reaching, developing and manufacturing smart card making equipments. Equipped with the advanced production lines, professional R&D team and strict quality control system, YQW keeps good reputation on excellent quality, customer focus service.and competitive prices.YQW always insists on "honesty first, professional concentration, in pursuit of excellent and service forever", and dedicates in technology innovation and product development. It has researched and developed kinds of production equipments for plastic and paper card, contact and contactless IC cards, double-interfaced cards and printing business cards . The company always takes the lead in the industry especially in terms of automatic punching machine, automatic card packing machine, automatic IC slot milling machine and automatic chip implanting machines. Its products are highly recognized by the oversea and domestic customers for excellent qualities and reasonable prices.
