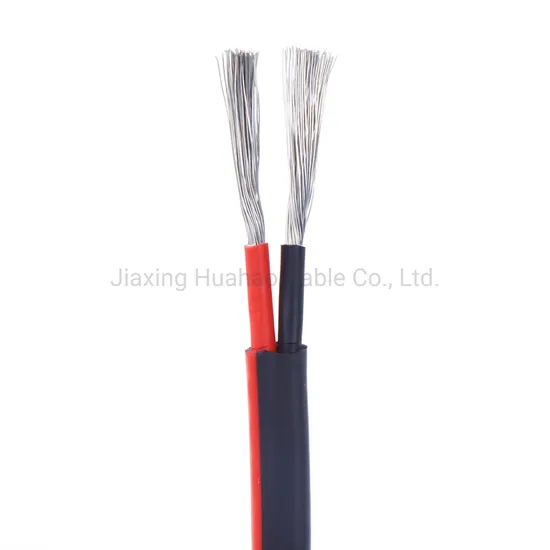

Electric Flexible Copper Condutor PVC Insulated Double PVC Sheath Twin and Earth Flat Cable
| US$0.10-2.50 | 3,000 Meters (MOQ) |
Basic Info.
Model NO.
BVVB
Application
Underground
Conductor Material
Copper,CCAM,CCA,CCC,Ccad
Sheath Material
PVC
Insulation Material
PVC
Material Shape
Round Wire
Range of Application
Household
Certification
SGS
Brand
Huahao
Voltage
300/500V 50/60Hz
Operating Temperature
From-40degree to +70degree
2core
Blue,Brown
3core
Black,Blue,Brown
4core
Green-Yellow,Black,Blue,Brown/2black,Blue,Brown,
Transport Package
Gunny Bag, Carton, Wooden Pallet etc
Specification
2core-11core
Trademark
as your request
Origin
Jiaxing, Zhejiang Province
HS Code
8544491100
Production Capacity
15000meter Per Day
Packaging & Delivery
Package Size
50.00cm * 50.00cm * 18.00cm
Package Gross Weight
50.000kg
Product Description
SPECIFICATION:2core 3ore 4core for reference| Part Number | Nominal Cross Section | No of Cores x Cross Section | Approx. outer Diameter | Approx. Cable Wieight | Conductor Resistance at 200C (Max) | Current Carrying Capacity on air at 300C |
| H03VV-F | 2x0,50 | 15x0,20 | 5,0 | 38 | 39 | 3 |
| H03VV-F | 2x0,75 | 22x0,20 | 5,5 | 46 | 26 | 6 |
| H03VV-F | 3x0,50 | 15x0,20 | 5,4 | 44 | 39 | 3 |
| H03VV-F | 3x0,75 | 22x0,20 | 6,0 | 56 | 26 | 6 |
| H03VV-F | 4x0,50 | 15x0,20 | 5,9 | 55 | 39 | 3 |
| H03VV-F | 4x0,75 | 22x0,20 | 6,4 | 68 | 26 | 6 |
| H05VV-F | 2x0,75 | 22x0,20 | 6,2 | 55 | 26 | 13 |
| H05VV-F | 2x1 | 30x0,20 | 6,6 | 65 | 19,5 | 16 |
| H05VV-F | 2x1,5 | 27x0,25 | 7,6 | 90 | 13,3 | 20 |
| H05VV-F | 2x2,5 | 47x0,25 | 9,2 | 130 | 7,98 | 27 |
| H05VV-F | 2x4 | 51x0,30 | 11,0 | 180 | 4,95 | 34 |
| H05VV-F | 3x0,75 | 22x0,20 | 6,5 | 65 | 26 | 13 |
| H05VV-F | 3x1 | 30x0,20 | 7,2 | 80 | 19,5 | 16 |
| H05VV-F | 3x1,5 | 27x0,25 | 8,5 | 110 | 13,3 | 20 |
| H05VV-F | 3x2,5 | 47x0,25 | 10,0 | 165 | 7,98 | 27 |
| H05VV-F | 3x4 | 51x0,30 | 11,4 | 230 | 4,95 | 34 |
| H05VV-F | 4x0,75 | 22x0,20 | 7,1 | 75 | 26 | 13 |
| H05VV-F | 4x1 | 30x0,20 | 7,8 | 95 | 19,5 | 16 |
| H05VV-F | 4x1,5 | 27x0,25 | 9,5 | 140 | 13,3 | 20 |
| H05VV-F | 4x2,5 | 47x0,25 | 11,0 | 200 | 7,98 | 27 |
| H05VV-F | 4x4 | 51x0,30 | 12,5 | 290 | 4,95 | 34 |
| H05VV-F | 5x0,75 | 22x0,20 | 8,0 | 100 | 26 | 13 |
| H05VV-F | 5x1 | 30x0,20 | 8,5 | 115 | 19,5 | 16 |
| H05VV-F | 5x1,5 | 27x0,25 | 10,5 | 170 | 13,3 | 20 |
| H05VV-F | 5x2,5 | 47x0,25 | 12,5 | 260 | 7,98 | 27 |
Product Description PVC Insulated Cable RVV 2 cores 2.5mm Flexible Copper Cable
1) 450/750V insulated wire
2) IEC, ASTM, DIN, BS standard
3) ISO9001, CCC
4) Free samples
1 Standard
GB 5023.11997, JB 8734.15-1998, Q/ZEL 02-2002, GB 5023.17-1997, IEC227
2 Rated Voltages:
450/750V 300/500V 300/300V. (600/1000V also available)
Application:Insualted flexible cables are suitable for use in connecting portable devices of general destional such as household electric equipment of general use as well as in wet room,in average work condition e.g. .of washing machine,fridge and kitchen and heat appliances on condition that there is no danger of contact with hot elements.
Packing:Ring of length of 100 meters and orther forms according to customer's requests.
