Working Under High Temperature 200 Deg.C Heat Resistant Insulation Self Fusing Silicone Rubber Tape

Product Details

Product Description

Product Description
Product Description

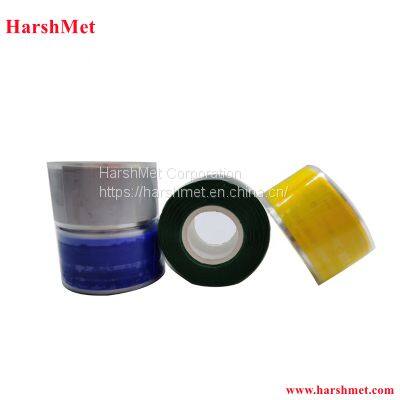

SFT-40C Transaprent Silicone Rubber Self Fusing Tape
Descriptions
HarshMet SFT-40 transparent silicone rubber self fusing tape is a high temperature and arc-and-track resistant tape composed of self fusing, inorganic silicone rubber and easy-tear and easy-strip liner. SFT-40 has wide
temperature tolerance of -50 to 250 . It can be
applied through 15kV for insulation and sealing for cable and reenter connections.
Sizes

Thickness* Width(mm)	Length
0.25*25, 0.25*30, 0.3*25, 0.3*30, 0.4*25, 0.4*30, 0.5*25 , 0.5*38.1, 0.5*30 , 0.5*45 , 0.5*50, 0.75*25, 0.75*30, 0.75*38.1, 0.75*45, 0.75*50, 0.8*50, 0.5*100, 0.7*100	Standard 3m, or any custom length

Features
Standard colors, black, red, yellow, green, gray, blue, orange, etc
Excellent track and arc resistance
Excellent ozone resistance
High Dielectric strength
Workable in extremely low temperatures
Excellent conformability, excellent fusion
Excellent weathering characteristics
Applications
As an ove-wrap for protection of terminating high voltage cables against arcing and tracking. Suitable for submarine cables, large motors, sensors, motors, electrical connections in aircraft engines and insulation wrap electrical equipment.
Technical Data

Performance	Typical data	Test Method
Thickness	0.51mm	ASTM D1000-76
Tensile Strength	23N/10mm	ASTM D-1000
Elongation	640%	ASTMD -1000
Dielectric Strength	35KV/mm, air	ASTM D 1000
	39KV/mm, oil
	33 KV/mm, oil at 180ºC ±5ºC	GB-T1695-2005
Fusion	Pass
UV Resistance	Pass	ASTM D 4388
Ozone Resistance	Pass	ASTM D 4388
Xenon-arc exposure@1008h	Pass	ASTM D 4388
