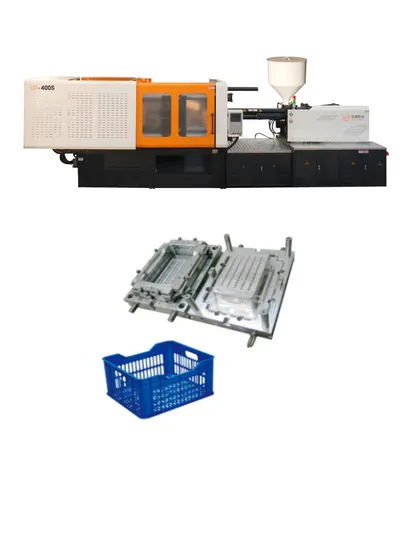

Large Volume Box Mold Injection Machine
| US$42,860.00 | 1 set (MOQ) |
Basic Info.
Model NO.
UP-420T
Type
Tube Head Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Heating Power
31.5kw
Machine Weight
21t
Tank Volume
900L
System Pressure
16MPa
Transport Package
Film Packing
Specification
830*830
Trademark
UP
Origin
China
HS Code
8474809090
Production Capacity
500sets Per Year
Product Description
China Servo Injection Molding Machine
Ningbo Union Power Machinery Co., Ltd.
Product Description:
This China servo injection molding machine from Ningbo Union Power Machinery Co., Ltd. offers advanced features for precise and efficient molding processes. Key specifications include:
Modulus of Capacitance: Ensures accurate positioning, size, and maximum allowable modulus of capacitance for the injection molding machine guide pillar (Green column).
Nozzle Parameters: Includes spherical diameter, aperture, outer diameter, maximum extension length, and positioning aperture for optimal performance.
Code Mold Parameters: Features code mold hole and slot size for consistent and reliable molding results.
Ejection Mechanism: Provides details on the ejection point position, ejector rod diameter, ejection force, and stroke for smooth mold ejection.
Mold Opening Stroke: Offers precise mold opening stroke and maximum opening distance for efficient operation.
Experience high-quality molding capabilities with this standard injection molding machine designed to meet industry standards and deliver superior results.
| Technical Parameters | Model UP-420T | ||
| Injection Unit | A | B | C |
| Screw diameter (mm) | 70 | 75 | 80 |
| Shot Volume (cm3) | 1385 | 1590 | 1810 |
| Injection weight (g) | 1247 | 1431 | 1628 |
| injection pressure (Mpa) | 199 | 173 | 152 |
| Screw speed (rmp) | 230 | ||
| Clamping Unit | |||
| Clamping force (KN) | 4200 | ||
| Open stroke (mm) | 740 | ||
| Max Mold height (mm) | 750 | ||
| Min Mold height (mm) | 280 | ||
| Space between tie bars(mm) | 745x745 | ||
| Ejector force (KN) | 110 | ||
| Ejector stroke (mm) | 180 | ||
| Others | |||
| Pump pressure (Mpa) | 16 | ||
| Motor/driving power (KW) | 39.7 | ||
| Heating power (KW) | 29 | ||
| Machine dimension (M) | 7.35x1.95x2.4 | ||
| Machine weight (T) | 15.4 | ||
| Oiltank cubage (L) | 650 | ||
