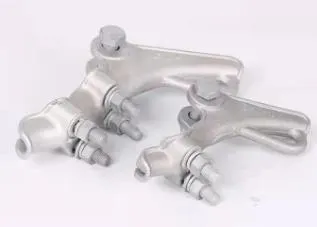

Cast Iron Strain Clamp Bolt Type Tension Strain Clamps for Cable Fittings

Product Description

Product Description Cast Iron Tension Clamp Cast Iron Dead End Anchor Tension Clamp
Description:
The Tension clamp body and keepers are cast iron material, the cotter-pin is stainless steel, the other parts are hot-DIP galvanized steel.
Application:
NLD series tension clamp is suitable for aerial line up to 220kV, fixing aluminium wire or steel core aluminium wire on the strain pole.
Structure features:
- Convenient installation: Don't need to use special tools, do not need to cut the wire.
- We do not need to cute the wire, reduced the electrical contact point, low loss, energy-saving effect of transmission line is
more significant.
- Safety and reliability for greatly increased.
- The body and the wedge core of Bolt Type Strain Clamp is made of high strength aluminum alloy materials, can provide more grip
and failure load.
- Have self-locking function, the wire is pulled tight trend. The product can be reused after removal.
Product Parameters

Type	Diameter of stranded wire	Ubolt		U.T.S(KN)
		Nos	Dia
NLL-1	5.0-10.0	2	M10	40
NLL-2	10.1-14.0	2	M12	40
NLL-3	14.1-18.0	3	M12	70
NLL-4	18.1-23.0	3	M12	90
NLL-5	23.1-29.0	5	M12	120

item	value
Structure	Single-side Bracket
Standard or Nonstandard	Standard
Application	Electric
Material	1/4 x1 1/2 Steel
Stud Bolt Diameter	5 x4 5/8
Pole Diameter	6 to 5/8
Product Finish	Hot Dip Galvanized
Standard Package	Carton or woven bags
OEM	YES
Standard	ASTMA-123
Production time	30-50days
