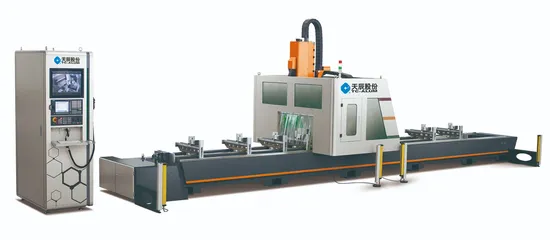

CNC Gantry Type 4 Axes High Speed Drilling Milling Center for Aluminum Profile Four Surface Machining Center
| US$90,000.00-91,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
LGSGZA-CNC-6600
Condition
New
Certification
ISO, CE
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
Customized
Longitudinal Travel(X Axis)
6800mm
X Axis Movement Speed
0~60m/Min
Longitudinal Travel(Y Axis)
1200mm
Y Axis Movement Speed
0~30m/Min
Longitudinal Travel(Z Axis)
660mm
Z Axis Movement Speed
0~20m/Min
Spindle Motor Power Max.
8/9.6kw
Transport Package
40gp
Specification
11300*2350*2550mm
Trademark
Tianchen
Origin
Jinan. Shandong, China
HS Code
8461409000
Production Capacity
100 Sets Per Month
Product Description
CNC Gantry Type 4 Axes High Speed Drilling Milling Center for Aluminum Profile Four Surface Machining Center1. Machine Features:
☆ Adopting Han's703 high performance CNC system, coordinated with three-dimensional programming software, with CAM software can edit program on the machine,perfectly realized the milling process.
☆ Adopting original imported high quality control system, servo motor. With high quality ball screw, linear guide rail pair, bearing and other parts to make sure a high processing accuracy.
☆ The fixture can be located freely.
☆ Double worktable can process two pieces or two types of profile, interactive loading without interfere each other.
☆ Equipped with 12 position cutting tool, and able to automatically changing tools.
☆ Adopting high speed electrical spindle imported from Italy, able to finished the process of any angle within ±90°, with extremely high working efficiency.
2.Technical Parameters:
| Item | Specification |
| Longitudinal Travel(X Axis) | 6800mm |
| X Axis movement speed | 0~60m/min |
| Longitudinal Travel(Y Axis) | 1200mm |
| Y Axis movement speed | 0~30m/min |
| Longitudinal Travel(Z Axis) | 660mm |
| Z Axis movement speed | 0~20m/min |
| Spindle motor power Max. | 8/9.6kW |
| Spindle rotation range | -90º~0º~+90º |
| Tool magazine | 12 Tools, tool changes automatically under program control |
| Processing height Max. | 350mm |
| Air source pressure | 0.5~0.8MPa |
| Total Power | 20kW |
| Fixture station No. | 8 |
| Positioning accuracy X Axis | ≤±0.1mm |
| Positioning accuracy Y/Z Axis | ≤±0.08mm |
| Repeated positioning accuracy | ≤±0.05mm |
| Surface roughness | Ra12.5μm |
| Lubrication and cooling | Automatic oil lubrication, spray cooling |
| Worktable profile size(W*H*L) | 500*350*6600mm |
| Overall dimension(L*W*H) | 12000*2400*2600mm |
| Machine net weight | 5500kg |
3. lMain Outsourced Components:
☆ Control system: Siemens
☆ Motorized spindle: Italy HITECO
☆ Ball screw: HIWIN/PMI/ABBA/TBI
☆ Low voltage electrical equipment: Siemens
☆ Milling cutter: Germany Vermano
