Steep Angle Sidewall Conveyor Belt with Cleat for Bulk Transportation

Product Description

Product Description

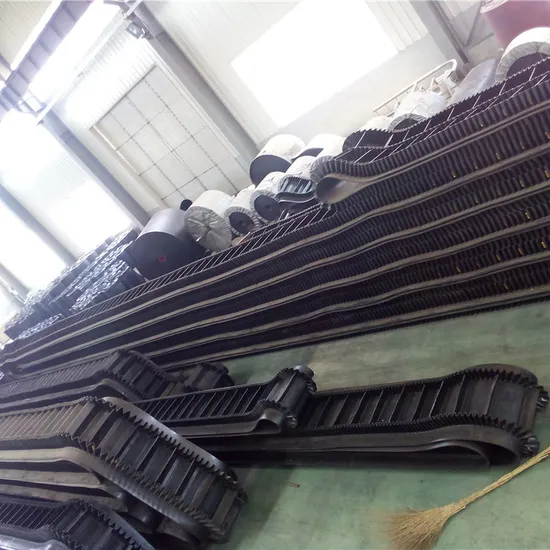

corrugated rubber conveyor belt Sidewall Belts allow end users to carry bulk materials at high inclines and angles up to 90 degrees. This allows material to be carried where space requirements are critical, and increases overall belt efficiency and throughput.
its cross-stiff base belt and corrugated rubber sidewalls combine with a variety of different-sized cleats to ensure your material stays in place.

Product Parameters
Specification
Belt width: 400-2600mm
tensile strength: 8-25mpa
Sidewall Height: 100/120/160/200/240/300/400/500 mm
Cleat Type: C type / T type / TC type / TCS type
Cleat Spacing: 126/252/378/504 mm
Cleat Height: 80/100/140/180/220/280/360/460 mm
Conveying Angle: 30°~90°
Features
1. Low Investment Cost
2. Reduced Leakage
3. Reduce installation space
4. Flexible Layout
5. Low Energy Consumption

Applications

Coal and Wood Chips Fired Power Stations
Underground Mining
Ship Loading and Unloading
Sand preparation in foundry plants
Slope conveying in open-pit mining
Steep angle carrying in road construction machines


Quality control we have several professional quality inspectors to make sure all the belts meet customer's requirement before shipping goods.
before production
we will check to use correct raw material to make belt before manufacturing
during production
we will check production line to avoid any thing dropped on the belt
after production
we will check the thickness&width&length of each belt to ensure enough size, after that, then we will check the belt tensile strength, break resistance, abrasion loss, adhesion.
Packaging & Shipping packing: we usually use pp bag for plain belt, and metal rack for chevron belt and sidewall belt.
delivery: 2 weeks after getting your prepayment

Other type conveyor belt Other rubber conveyor belts
chevron conveyor belt
we have shape close V, open V, close Y, open Y, close U, open U, Multi V etc
height can be C6, C10, C15, C17, C20, C25

sidewall conveyor belt
steel cord conveyor belt
rough top conveyor belt
pipe conveyor belt

Related other product we make we also have below products can make
rubber sheet SBR/NBR/CR/EPDM
pulley lagging sheet
coin rubber mat/diamond rubber mat/checker rubber mat
latex rubber sheet
