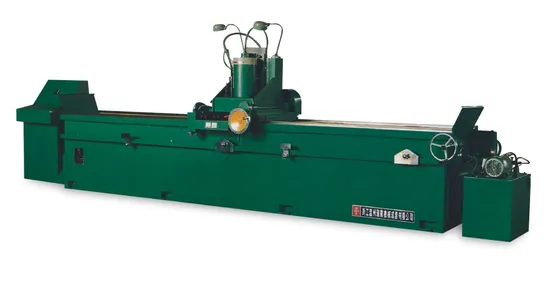

High Speed Knife Edge Face Grinder with Long Service Life (DMD1650)

Product Description

Introductions of Knife Edge Face Grinding Machine/Knife Edge Face Grinder:
Model DMD1650 Knife Edge Face Grinding Machine is a kind of strong grinding type edge face grinder we specially designed for cutter grinding professionals, cutter grinding centers or factories which need knives in large amount or blade manufacturers in the fields of printing, wood and paper making etc.
The main part of the machine is gantry structure,
the travel adopts hydraulic uint for stepless speed variation and is set with automatic feed of grinding wheel. The grinding head is equipped with two types of lifts, manual type and motor-driven type.
The travel guide rail adopts scroll straight line guide rail and 2 types of knife carlibrating units.
The grinding angel is adjustable between 0 and 90 degrees. The machine features hydraulic uni travel, heavy grinding head part, big motor power of grinding head and big grinding wheel diameter. That ensures the property of smooth grinding and big grinding force we well.
It is an advanced strong machine in China, with best quality and competitive price.
Advantages:
1. Gantry structure
2. Hydraulic Automatic Feeder
3. 2 kinds of Grinding head: Manual and motor-driven
4. Scroll straight line guide rail and 2 types of knife carlibrating units.
5. Adjustable grinding angel frm 0 -90 degrees
6. Big grinding wheel diameter
7. Smooth grinding and big grinding power
8. Prompt delivery
We Zhejiang Guowei Printing Machinery Co.LTD sincerely hope we can establish business relations with you for mutual benefits. We welcome your inquiry anytime any where. Pls donot hesitate to contact us for any further details.

Model	DMD-1650
Max. Grinding Length	1700mm
Size of grinding Wheel	200mm
Width of Grinding Knife	160mm
Rotation Angle of Worktable	0 - ±90
Moving Speed of Grinding Head	2-10m/min
Outside Dimension(LengthxWidthxHeight)	2800x700x1700mm
Net Weight	2.8 T
Power of Grinding Head Motor	3KW

The advantage of our company: (1) Over 30 years of international leading cutting equipment manufacturer
(2) Applied range including Paper sheet,Plastic sheet,Foil,Honeycomb board,Cardboard,Carbon fiber laminate,Leather,Glassine and Packing sheet ect.
(3)We have a special business mode,which is personalized production.We provide customized service according to each customer's specific way of production with the features of productions.
(4)We have our own warehouse to ensure the supply of spare parts at any time.
(5)Strictly follow ISO quality control, competitive price, fast delivery.
About Our Warehouse:
About Our Exhibition:
The Payment Terms: 30% TT in advance, balance before shipment. The Delivery Time: About 25 days after receipt of the deposit.
