CE Lithium Anode Slurry Double Planetary Mixer

Product Description

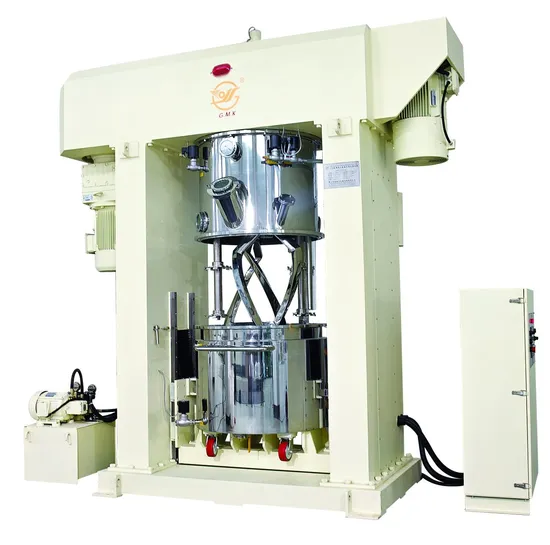

Product Description LDH Double Planetary Dispersing Mixer has combined the theories of the traditional double planetary mixer and high speed dispersing mixer, to create a new, high-efficient machine, at present it is widely used in new energy fields.↳
As per the character of Lithium-ion power cells and electronics capacity, we developed new reinforced machinery applied to the dry powder process for making Lithium power positive &negative electrode slurry , based on the traditional planetary mixers and dispersing power mixers, with high rotation speeds and larger torque. During the design, our company fully considered factors such as the rotational speed of stirrers, mixing power, linear dispersion speed, high viscosity slurry resistance reduced by reasonable twist stirrer shape, and distribution of turbulence intensity inside of the vessel to create the more efficient and more stable double planetary power mixer and the reinforced twist stirrers can deal with high viscosity battery slurry. The stirrer characters for the power mixer is that - the revolution and rotation of twist stirrer is clockwise -meanwhile rotation for high speed dispersing is anticlockwise, whose speed is adjustable to make the materials move complicatedly under shearing, kneading and dispersing, effectively eliminates all dead point and climbing phenomena during mixing. Three sets of mechanical seals, coupled together with soft and silence sealing to make sure reliable seal performance. On materials temperature control, it's used with unique thermos-cope technology-planetary frame and thermos-cope rod for revolution. Pt100 temperature measurement sensors have direct contact with material, greatly increasing accuracy of temperature measurement, response is much faster, error is reduced to only ±0.5ºC.
Available capacity: 2L, 5L, 10L, 15L, 20L, 30L, 40L, 50L, 60L, 100L, 150L, 200L, 250L, 300L, 500L, 600L, 800L, 1000L

Company Profile (GMK) Foshan Golden Milky Way Intelligent Equipment Co., Ltd., founded in 2002, listed in 2017 in China, was specialized in R&D of equipment, and also complete solutions for automated production, after decades of development, with top-notch chemical equipment for silicone and macromolecular compounds, and equipment for new energy like lithium battery, we are a leading and professional manufacturer and service provider. Now we keep updating and launching new series for our clients to enhance their business.
