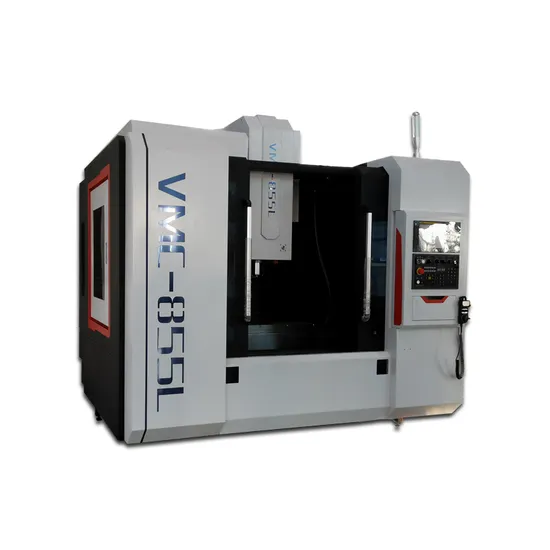

New Factory Price 3 / 4 / 5 Axis Vmc 850 Milling Machine CNC Router Machine
| US$13,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
vmc 850
Object
Tool
Structure
Vertical
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE
Condition
New
Worktable Size (L×w) (mm)
1000*500
Max. X Axis Travel (mm)
800
Max. Y Axis Trave (mm)
500
Max. Z Axis Travel (mm)
500
Range of Spindle Nose to Worktable
170-670
Tool Changing Time(S)
1.75
Bed Cushion Height
70mm
Transport Package
Wooden Packing
Specification
2550*2353*2403
Origin
China
Production Capacity
600 Sets Per Month
Product Description
| ITEM | VMC855 | VMC850 |
| WORKTABLE SIZE (L×W) (MM) | 1000*550 | 1000*500 |
| MAX. X AXIS TRAVEL (MM) | 800 | 800 |
| MAX. Y AXIS TRAVE (MM) | 550 | 500 |
| MAX. Z AXIS TRAVEL (MM) | 550 | 500 |
| RANGE OF SPINDLE NOSE TO WORKTABLE | 120-670 | 170-670 |
| DISTANCE FROM SPINDLE CENTER TO COLUMN (MM) | 590 | 524 |
| WORKTABLE SPACINGOF T-SLOTS (NUMBER-SIZE×DISTANCE) | 5-18*90 | 5-18*102 |
| SPINDLE (MODEL /DIAMETER) | BT40/Φ150 | BT40/Φ140 (SHORT NOSE) |
| SPINDLE SPEED | 8000RPM(BELT/DIRECT) | 12000RPM(BELT/DIRECT) |
| X.Y.Z AXIS BALL SCREW | 4016 | 3616 |
| TRACK WIDTH (X/Y/Z) | 35/45/45 | 35/35/35 |
| SCREW DIAMETER | 40/40/40 PITCH 16MM | 36/36/36 PITCH 16MM |
| X.Y.Z AXIS RAPID SPEED (MM/MIN) | X48000/Y48000/Z48000 | X48000/Y48000/Z48000 |
| X.Y.Z AXIS SPEED (MM/MIN) | 1-10000 | 1-10000 |
| X AXIS LINEAR SPECIFICATION | RGH35HA | RGW35HC |
| Y AXIS LINEAR SPECIFICATION | RGW45HC | RGW35HC |
| Z AXIS LINEAR SPECIFICATION | RGW45HC | RGH35HA |
| XYZ AXIS MOTOR CONNECT WAY | DIRECT | DIRECT |
| RECOMMEND SPINDLE MOTOR POWER (KW) | 7.5KW | 7.5KW |
| STANDARD SYSTEM | SIEMENS/FUNUC | SIEMENS/FUNUC |
| RECOMMEND X.Y.Z AXIS MOTOR (NM) | 11/11/20(brake) B12/B12/B22(brake) | 11/11/20(brake) B12/B12/B22(brake) |
| TOOL SHANK MODE | BT40 | BT40 |
| TOOL MAGAZINE | ATC ARM TYPE | ATC ARM TYPE |
| TOOL MAGAZINECAPACITY(PCS) | 24T | 24T |
| TOOL CHANGING TIME(S) | 1.75 | 1.75 |
| BED CUSHION HEIGHT | 50MM | 70MM |
| X/Y/Z POSITIONING ACCURACY(MM) | ±0.005/300JIS | ±0.005/300JIS |
| X/Y/Z REPEAT POSITIONING ACCURACY(MM) | ±0.003/300JIS | ±0.003/300JIS |
| MAX LOADING OF WORKTABLE (KG) | 500 | 500 |
| FRAME MATERIAL | HT300 | HT300 |
| SPINDLE | TAIWAN BRAND | TAIWAN BRAND |
| SCREW | TAIWAN BRAND | TAIWAN BRAND |
| LINEAR | TAIWAN BRAND | TAIWAN BRAND |
| BEARING | JAPAN | JAPAN |
| TOOL CHANGER | TAIWAN BRAND | TAIWAN BRAND |
| DIMENSION (MM) | 2603*2360*2455 | 2550*2353*2403 |
| FRAME WEIGHT(KG) | 3400 | 3000 |
| MACHINE WEIGHT (KG) | 5000 | 4300 |
