Grass Wood Granules Boiler Pellet Biomass Briquette Machines

Product Description

Product Description
On the market, there are two types wood pellet machine,flat die and ring die(horiztonal type and vertical ring die pellet
machine)Wood pellets machine also called wood pellet making machine,pellet press machine, is a biomass equipment which is used to press small size wood into 6/8mm wood pellets. Our wood pellets machine belongs to the 8th Vertical ring die.Double layer, both side can be used, enhanced the lifetime of spare parts and reduce cost.

The main advantages of the eighth generation pellet machine:
1. The main motor is changed to a standard flat key motor, and the German standard KTR elastic coupling is adopted with the reducer, which solves the problem of regular lubricating grease for the spline of the seventh generation granulator. Moreover, the replacement cost of KTR elastomer is much lower than the replacement cost after spline damage. 2. The positioning of the spindle frame plate and the spindle has been upgraded and improved, the pin positioning that is not easy to disassemble and easy to wear is removed, and the embedded positioning method of CNC machining is adopted, which is easy to disassemble and not easy to wear.
3. Improvement of kick-out system: The reducer of kick-out plate is replaced by a cycloidal pinwheel reducer to a hard-tooth surface reducer. The rotating components of the kick-out system are completely separated from the kick-out boot (the entire driving operation is outside), which completely solves the problem that the kick-out system is susceptible to high temperature steam. Moreover, in the kick-out boot of the pellet machine, except for the kick-out turntable, the rest of the non-moving parts that can contact the material and steam are all made of stainless steel, which fundamentally solves the corrosion problem of metal materials.

Model	VR450	VR560	VR600	VR600A	VR700A
Power(kw)	55+0.37	90+1.5+0.37	110+2.2+0.37+0.65	132+2.2+0.37+0.65	160+2.2+0.37+0.65
Voltage	380v/220v 50hz 60hz customized
Rotation speed	1450r/min
Pellet size	4-12mm
Pelletize temperature	40-80 ºC
raw material moisture	15-25%
Weight	2.9T	5.6T	6.5T	7T	8T
Size	2160*1000*1850	2300*1250*2000	3100*1300*2100	2200*1200*1750	2460*1400*2000
Ring die inner diameter	450	560	600	600	700
Capacity	0.8-1T/H	1.2-1.5T/H	1.8-2T/H	2-2.5T/H	2.5-3T/H

Our project
We can customized different line according to your different raw material moisture and different raw material do the one-stop solutions for you . just send me an inquiry .
(Chipping---Grinding---Drying---Pelleting---Cooling&Sifting---Packing process)
Spare parts: Ring Die, Roller, Roller assembly
(Chipping---Grinding---Drying---Pelleting---Cooling&Sifting---Packing process).

Sucessful case
Below is our Peru client bought this 1TPH animal feed pellet line
Below is our Chile client bought this 700-900KG/H biomass pellet line
Below is our client from Cote d'Ivoire bought the 1TPH cattle feed pellet line
Raw material and application

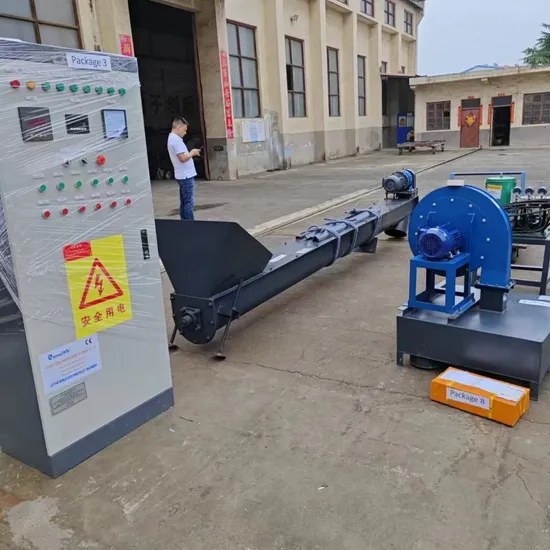

Packaging & Shipping
Transction and good review
