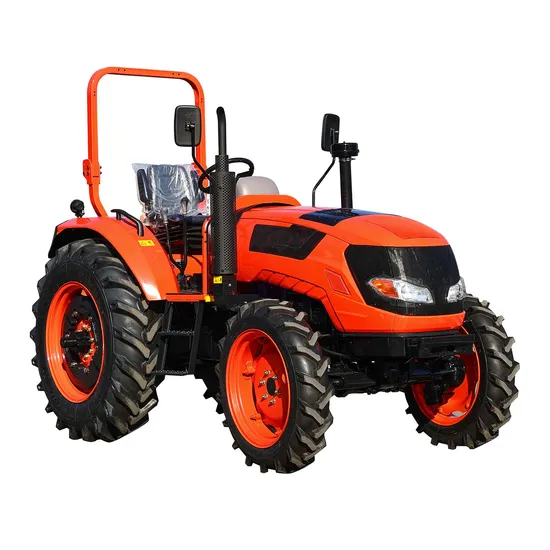

FL704 70HP Shuttle Gearshift Model with Disc Plough and Harrow and Backhe and Front Endloader Agricultural Tractors
| US$8,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
FL704
Power Source
Tractor
Operation
Soil Preparation Machinery, Movable Operation
Traction Type
Semi Hanging
Drive Type
Gear Drive
Arbor Configuration
Horizontal Axis
Certification
ECE, EU, CE, SGS
Color
Orange
Transport Package
Container, Sea, Train
Specification
20CBM
Trademark
Farmlead
Origin
China
HS Code
87019410
Production Capacity
40 Per Day
Product Description
| Main parameters | |
| Type | FL954 |
| Drive type | 4WD |
| Engine | (CN stage2) |
| Engine Type | YC4B105Z-T22 |
| Max. Torque (Nm @ engine rpm) | 390-430@ 1440-1640 |
| Displacement (L) | 4.578 |
| Fuel tank capacity (L) | 140L |
| Rating power of engine | 70/2300 |
| kW/rpm | |
| Fuel consumption @ nominal power | ≤235 |
| Air Intake Type | TC |
| N / Displacement | 4/4.578 |
| Air filter | Wet/Dry |
| Torque reserve | 41% |
| Transmission system | |
| Clutch | Single disc - Dry clutch -12" |
| No. of gears | 16F+8R:4X(2+1)X2 |
| Shift method | Sliding sleeve |
| Max. speed | 32.22km/h |
| Gear position | Command aside |
| Hydraulic system | |
| Hydraulic output flow rate | 46 |
| Hydraulic output valve | 2 slices 4 ways |
| Working device | |
| Three-point-linkage | 2 type |
| PTO Speed PTO | 540/1000 |
| Lifting Capacity (610mm)kN | 22 |
| Tillage depth adjustment | Position, Float |
| Parameter | |
| The whole machine size (dimensions) mm | 4370X2100X2760 |
| Min. operation mass (kg) | 4105(W/ cabin)/3805(W/O cabin) |
| Mini turning Radius (m) | 4.9 |
| Rated traction force(KN) | 21.8 |
| Deck | Flat Deck |
| Wheelbase(mm) | 2270 |
| Minimum ground clearance (mm) | 375 |
| Cabin | Basic:ROPS, Opt., canopy or Heating Cabin, or HVAC cabin |
| Front/rear wheel track | stepwise adjustment Front:1610/1710/1750/1810/1850/1970(common 1610) Rear: 1620/1720/1820/1920/2020 (common 1620) Rear stepless adjustment 1620-2020 (common 1620) |
| Tyre size | Normal tyre: 11.2-24/16.9-34 |
| Braking and steering | |
| Braking system | Wet type,disc brake |
| Steering type | Hydraulic steering |
| Steering Angle | 43.8 |
