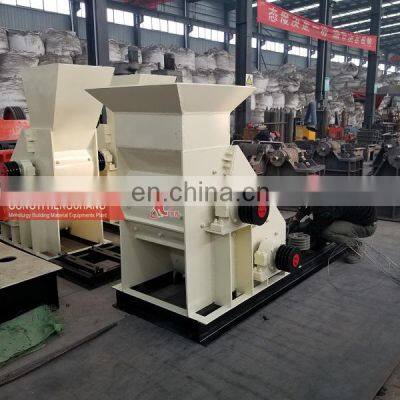

Good Price Mining Double Two Stage Crusher Machine for Crushing Mineral Ores

Product Description

Product Description
Products DescriptionDouble stage hammer mill crusherThe double stage hammer mill crusher can easily crush high-humidity materials such as coal gangue, shale, coal slag and other materials. Used as gangue and coal slag as additive and internal fuel for brick factory; using gangue and shale to produce standard brick and hollow brick.Product DescriptionWorking principleWhen the materials get into the working area of hammers, the rotating hammers with high rotation speed are crushing them, the crushed products meeting the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushing area by the hammers for being re-crushed until they reached the required size. When the bulk material into the machine, hit by the hammerhead and stopped by material bracket. That's not only increase the contact area between material and hammerhead but also avoid sudden infarction of the rotor. After the impact, bulk materials hit themselves on the crushing cavity. Then the stones overflow from the straight screen or falling and been hammered again forming the stones. At last discharged from outlet of the hammer crusher.Product CharacteristicsThe double stage hammer crusher is equivalent to two hammers broken into one, which is reasonably combined into a whole. Two sets of rotors are used in series and have the following characteristics:1. Two rotors up and down crushingThe two sets of rotors connected in series make the materials crushed by the upper rotor immediately crushed again by the hammer head of the lower rotor rotating rapidly. The materials in the inner cavity collide with each other quickly and crush each other to achieve the effect of hammer powder and powder powder. Unload directly.2. There is no grate bottom, high-humidity material, and it will never be blockedThe traditional grinder with grate sieve plate is not suitable for raw materials with a moisture content higher than 8%. When the raw material moisture content is higher than 10%, it is easy to cause serious blockage, so that the hammer head cannot rotate, the material cannot be discharged, or even burn A bad motor seriously affects production.The design of this machine has no grate bottom, no strict requirements for the moisture content of the material, and there is no problem of blocking the sieve plate, and there is no problem that the fine powder cannot be discharged in time, repeated crushing, so the crushing efficiency is high, and there is no hammer head. Invalid wear phenomenon.Recommend ProductsJaw crusherfour roller crusherimpact crusherOur AdvantagesHammer headThe weight of the hammer head can be customized according to thecustomer's requirements. The hammer head is made of new high-quality multi-element high chromium manganese steel composite casting, and its service life is several times that of the general hammer head.SpindleThe material of the spindle is made of high quality alloy steel, which is processed by ultrasonic inspection for quenching and tempering.High strength steel carburizing heat treatment was used to improve the wear resistance of hammer disc and hammer hole.Lining plate and strike plateIn order to prevent the abrasion of the frame, the inner wall of the frame is made of manganese steel. The striking plate is made of high-strength steel and quenched and strengthened. The superior abrasion resistance and impact resistance of the lining and striking plate are guaranteed.CertificationsHammer crusher CE CertificationISO Quality System IdentificationMotor CE certificationProduct ParamentersModelSCP 600×400SCP 600x600SCP800×600SCP 900×800SCP 1000x800Feeding Size ( mm )≤100≤150≤200≤260≤400Outlet Size( mm )≤3(<2mm above 90%)≤3(<2mm above 80%)≤3(<2mm above 80%)≤ 3(<2mm above 80%)≤3(<2mm above 80%)Capacity( t/h )15-2515-3050-7050-9060-120Motor Power ( kw )18.5+2222+2237+4555+7575+55Dimensions( L× W ×H )( mm )2560×1020×16502760×1280×17503760×1314×21403870×1700×31504500×1700×3150
