Stock Available Hydraulic Jacks/Lifting Jack for Tank Automatic Tank Hydraulic Jacking System

Product Description

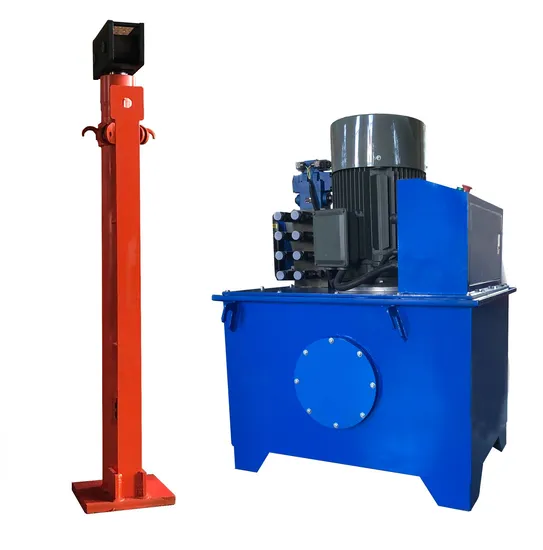

LYT-type hydraulic jacks is composed of one-stage double-acting hydraulic cylinder, pulley block, load-bearing chain and oil way etc. Moveable pulley is used to enlarge chain stroke, i.e. traveling distance of the cylinder is 1/2 of lifting distance of the chain. It applies to inverted installation and construction of various large storage tanks (steel) and various storage tanks.
LYT-type chain-type hydraulic hoist includes the following models: LYT-120-2700, LYT-200-2700, and LYT-300-2700 etc. (those with special stroke need to be customized).Technical Parameter
1.Technical performance parameters of hydraulic pump station

Model	Tank volume	Rated pressure	Rated flow	Power	Control voltage of solenoid valve	Motor drive rate
YB-7.2	220L(700*550*580)	25Mpa	7.2L/min	Three-phase Four-wire (380V)	220V	5.5kw
YB-14.5	340L(750*650*650)	25Mpa	14.5L/min		220V	7.5kw

2.Technical performance parameters of the hoist

Model	Rated lifting capacity (KN)	Hydraulic area (mm)	Rated oil pressure (MPa)	Piston stroke (mm)	Chain stroke (mm)	Cylinder safety equipment	Reinforcement measures
LYT-120-2700	120	11304	25	1500	2700	Double-direction oil-way hydraulic lock	2 adjustable pull rods
LYT-200-2700	200	18859.6	25	1500	2700
LYT-300-2700	300	25434	25	1500	2700

1. Support you to win the project during bidding phase. We can provide your more suitable configurations to help you shorten the constrcution time.
2. We can provide all technical documents and advices to support you for construction procedure clearifications
3. We can calculate the most suitable number of hydraulic jack according to the weight of the tank
4. We can provide your suitable hydraulic jack accessories with much more competetive price from our long time business partner if you need.
5. We can provide site people training service, and operation service or manpower service or as a subcontractor.
