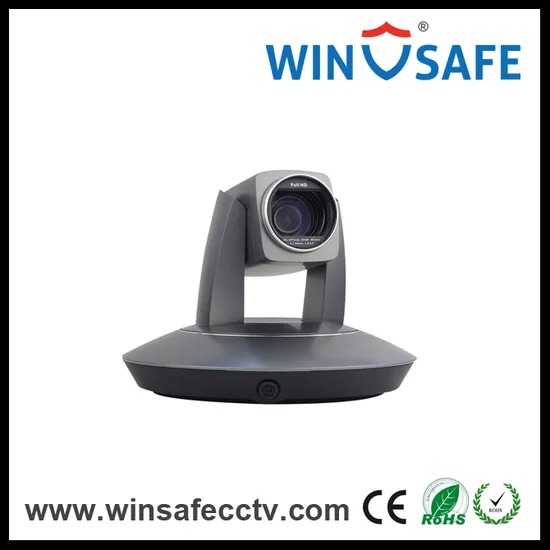

High Speed PTZ Video Conference Camera

Product Description

High speed PTZ Video conference camera
We are happy to release LTC Series advanced Lecturer Tracking Camera and STC series Student Tracking Camera!
The new tracking camera adopts the most state-of-the-art face recognition and motion tracking technology, it can precisely lock and track lecturer
all around the whole classroom automatically, free of other moving or lighting interference, no need to wear any sensor, completely unmanned,
dual lens both with up to 1080p60 format and HD-SDI interface, almost zero setup.
The student tracking camera can precisely detect student's standing & sitting behavior, then gives them close-up or full view image accordingly,
all done automatically.
LTC-S2007 Lecturer Tracking Camera
Precisely Lock & Track a specific object
Free from any light/moving interference
1x Priority tracking area + 8x blocking zones
No limit to tracking area
Auto zoom in/out during tracing
Smooth & Intelligent tracking capability
Easy setup & Configure
STC-S2007 Lecturer Tracking Camera
Precisely detect students's standing & sitting behavior, then give them close-up or full view image accordingly
No limit to tracking area
Auto zoom in/out during tracing
Smooth & Intelligent tracking capability
Easy setup & Configure
Our Service:
1) We'll Gurantee you 100% Satisfaction
2) Pls report us if there are any problem, we will solve it ASSP.
3) This irems comes with 2 Years warrantry
4)Shipping and handing fees are not refundable for return
5) Should you have any question or problems, please send e-mail, call us or talk with us online

Model	LTC-S2007		STC-S2007
Function	Lecturer Tracking Camera		Students Tracking Camera
Tracking Camera
Image Sensor	1/2.8" Exmor CMOS 2,140,000 Pixels
Lens	f=4.9mm - 94mm; F1.6-F 3.5
Zoom	Optical:20X; Digital: 12X
Field of View	59.5° - 3.3°
Focus	Auto, Manual, One Push
Min.Illumination	0.5 Lux
Shutter Speed	1/1 to 1/10,000s
Gain	Auto/Manual
White Balance	Auto, Manual, Outdoor, One Push, Manual
Exposure	Auto, Manual, Shutter Pri, Iris Pri
S/N Ratio	≥50dB
Panoramic Camera
Image Sensor	1/3" CMOS
Effective Pixel	2,100,000 Pixels
White Balance	Auto
Exposure	Auto
Focus	Manual
Lens	3.73mm
Field of View	Horizontal: 92°; Vertical: 50°
PTZ
Pan/Tilt Angle	Pan Range: - 170° - +170°; Tilt --30°- +90°
Pan/Tilt Speed	Pan:0.1° -160° /sec,Tilt:o.1° -120° /sec
Preset Number	256
Comm. Interface	RS-485, RS-232
Protocol	PELCO-D/P VISCA
Video
Video Output	HD-SDI(2 channel)
Video Format	HD:1080p/60, 1080p/50, 1080p/30, 1080p/25, 1080i/60, 1080i/50, 720p/60, 720p/50, 720p/30, 720p/25 SD: NTSC, PAL
General
Power Supply	DC12V
Power Consumption	<15W
Working Temp	0°C - +40°C
Storage Temperature	-20°C-+60° C
Dimension	226mm x 163mm x 212mm
Weight	1.96kg
Color	Grey
