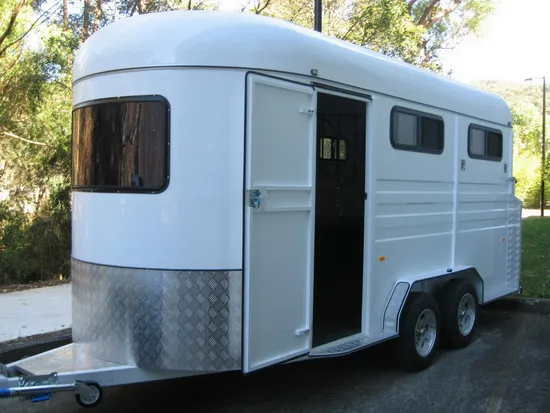

Standard Angle Load Three Horse Float Camper Horse Trailer

Product Description

3 Horse Standard Angle Load Float:

Model NO.	3HAL-S
Overall Dimensions	5425*2280*2590	Dimension of Body	4575*2280*2230
Maximum Internal Dimension of Body	4550*1930*2155	Color	Single or double or Customized
Empty Weight	1800 KG	Max Payload	2600KG
QTY/40'HQ	Loading in Bulk Fixed on The Floor of Container 2 Units in 1*40'HQ

1.TRAILER MATERIALS

1.1 CHASSIS MATERIAL double hot dip galvanized RHS(3.5mm-4.0mm)

1.2 FRAME MATERIAL double hot dip galvanized RHS(2.5mm)

1.3 BODY PANEL galvanized (1.2mm)

1.4 ROOF special molded FRP 4575*1980

1.5 NUTS & BOLTS stainless steel

2.WHEELS & TYRES

2.1 WHEEL RIM 14' aluminium alloy rims

2.2 TYRES 185R14C

2.3 SPARE WHEEL one

3.AXLES & SUSPENSIONS

3.1 AXLES two special trailer axles

3.2 LEAF SPRINGS roll rocker tandem spring suspension 6 plates

3.3 BRAKE SYSTEM double axles electric brakes with break-away systems

4.WINDOWS & DOORS

4.1 FRONT WINDOW 1220*610

4.2 SIDE WINDOWS 2 pop-up rectangle windows,3 sliding rectangular windows

4.3 VENTS double sash casement vent

4.4 SIZE OF SIDE DOOR 1755*615

4.5 REAR UPPER DOOR 2020*1065

4.6 RAMP DOOR 2020*1210

4.7 REAR UPPER & RAMP DOOR STRUT high-intensity anti-rust strut

4.8 HINGES FOR REAR UPPER DOOR special 6mm diameter copper hinges

5.DRAWBAR

5.1 DRAWBAR CHECKER PLATE 1.2mm aluminium

5.2 DRAWBAR SAFETY CHAIN two

5.3 BRACING WHEEL one

6.LIGHTS & RETRO REFLECTORS

6.1 TRAILER PLUGS square 7 wick plug

6.2 SIDE LAMPS 6

6.3 REAR LAMPS LED group 6.4 REAR LAMPS STAND aluminium

6.5 RETRO REFLECTORS 6

7.MUDGUARD

7.1 MUDGUARD TYPE compact mudguard

7.2 MUDGUARD CHECKER PLATE 1.2mm aluminium in the front of mudguard

7.3 PEDAL & ALUMINIUM STEP 1.2mm aluminium decoration board

8.INTERIOR & EXTERIOR

8.1 A KITCHEN none

8.2 HORSE PROTECTION FRAME full padded

8.3 HORSE RING six

8.4 RUBBER MATTING FOR RAMP DOOR 10mm rubber matting

8.5 RUBBER MATTING FOR FLOOR 10mm rubber matting

8.6 RUBBER MATTING FOR INNER SIDE PANEL 6mm rubber matting

8.7 WOOD BOARD FOR FLOOR & RAMP DOOR 18mm hardwood plywood

8.8 RUG RACK side

8.9 SADDLE RACK in saddle box

8.10 SADDLE BOX 1500mm height for 3 saddles

8.11 PAINTING single or customized

9.DIMENSIONS

9.1 OVERALL DIMENSIONS ( L x W x H: mm ) 5425*2280*2590

9.2 BODY DIMENSIONS ( L x W x H: mm ) 4575*2280*2230

9.3 INNER DIMENSIONS ( L x W x H: mm ) 4550*1930*2155

Besides,we also make other size for horse floats.
Our factory:
Our factory covers 53,613 square meters, the workshops cover 24,371 square meters,owing CNC punching machine, CNC plate bending machine, CNC plasma cutting machine, CNC Laser cutting machine, Plate Bending Machine, Plate Clipping Machine, Pipe Bending Machines, Pipe Swaging Machines, Punching Machines and Welding Machines. With professional team and equipment, Haylite can offer you professional service.
We usually manufacture according to customers requirements,like drawings or samples.
With wide range on manufacturing,the material can be steel,cast iron,stainess steel,aluminum or plastic.
Finish can be HDG,powder coated,electric galvanized and paint.

Our products range including
1.Tool cabinets & workbench
2.farm gate & livestock handling equipments,farm gate fittings & hardware
3.trailer products,traffic control products
4.driveway gate & fence,dog kennels,Temp fence and fittings,handrail5.Tent buildings
6.metal products according to your drawings
