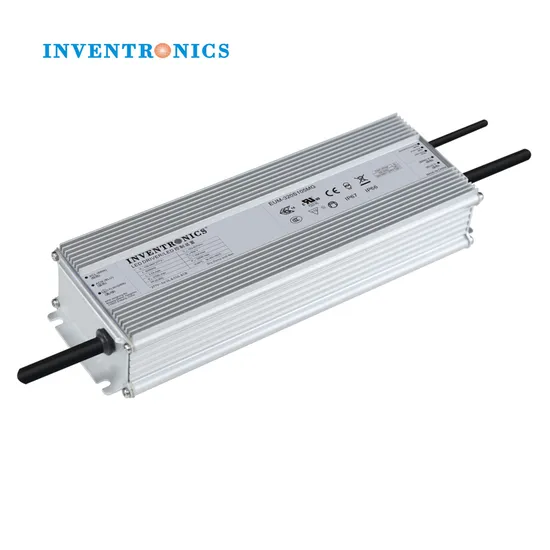

Inventronics 300W 320W 350W Smart Programmable 0-10V Dimmable LED Driver for Grow Lights

Product Description

Product Parameters
Models:

Adjustable Output Current Range	Full-Power Current Range (1)	Default Output Current	Input Voltage Range(2)	Output Voltage Range	Max. Output Power	Typical Efficiency (3)	Power Factor		Model Number (5)
							120Vac	220Vac
70-1050mA	700-1050mA	700 mA	90~305 Vac/ 127~300 Vdc	153~457Vdc	320W	94.0%	0.99	0.96	EUM-320S105MG
105-1500mA	1050-1500mA	1400 mA	90~305 Vac/ 127~300 Vdc	107~305Vdc	320W	93.5%	0.99	0.96	EUM-320S150MG
175-2500mA	1750-2500mA	2100 mA	90~305 Vac/ 127~300 Vdc	64~183 Vdc	320W	93.0%	0.99	0.96	EUM-320S250MG
285-5000mA	2850-5000mA	4900 mA	90~305 Vac/ 127~300 Vdc	32~112 Vdc	320W	92.5%	0.99	0.96	EUM-320S500MG (4)
535-7600mA	5350-7600mA	6700 mA	90~305 Vac/ 127~300 Vdc	21~60 Vdc	320W	92.5%	0.99	0.96	EUM-320S760MG (4)

Notes: (1) Output current range with constant power at 320W (2) Certified input voltage range: UL, FCC 100-277Vac; otherwise 100-240Vac. (3) Measured at 100% load and 220Vac input (see below "General Specifications" for details). (4) SELV output. (5) MG are UL Recognized, ENEC and CCC, etc. models.
Product Description
Fetaures: • Full Power at Wide Output Current Range (Constant Power) • Adjustable Output Current (AOC) with Programmability • Isolated 0-10V/PWM/3-Timer-Modes Dimmable • INV Digital Dimming, UART Based Communication Protocol • Dim-to-Off with Standby Power ≤ 0.5 W • Always-on Auxiliary Power: 12Vdc, 250mA, 3W (Transient Peak Power up to 10W) • Low Inrush Current • Output Lumen Compensation • End-of-Life Indicator • Input Surge Protection: DM 6kV, CM 10kV • All-Around Protection: IUVP, IOVP, OVP, SCP, OTP • IP66 / IP67 and UL Dry / Damp / Wet Location • TYPE HL, for Use in a Class I, Division 2 Hazardous (Classified) Location • 5 Years Warranty
Descriptions: The EUM-320SxxxMx series is a 320W, constant-current, programmable and IP66/IP67 rated LED driver that operates from 90-305Vac input with excellent power factor. Created for smart lighting application, this family provides an auxiliary voltage and dim-to-off functionality for powering low voltage, wireless controls. The dimming control supports 0-10V dimming as well as two-way communication via Digital Dimming, a UART based communication protocol. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, input under voltage, input over voltage, output over voltage, short circuit, and over temperature.
Detailed Photos
