Protector De Voltage 110 Protector De Voltaje Digital

Product Description

Product Description voltage protector, digital voltage, over voltage protection module, high low voltage protection,3 phase voltage protector, tv guard voltage protection, voltage stabilizer for led tv,voltage and current protection, voltage protection relay,voltage protection,protection voltage,voltage protector tomzn,voltage protector 110v,over under voltage protection,led voltage indicator,digital voltage frequency meter,led strip low voltage,under voltage
1. Application:
Mainly Tomzn voltage and current protection digital voltage meter with double LED digital display used for household appliance and similar use of low-voltage distribution lines, such as communication, television broadcasting, computer room, automatic control, mechanical equipment, all distribution equipment and lightning protection etc. It is a terminal protecting device of power distribution system of voltage of 500V and below. In low voltage distribution line with rated voltage 110-120V, rated current 1-80A adjusted, over voltage protection AC130-260V Adjusted, under voltage protection AC70-110V Adjusted and the working frequency is 50Hz. It protects the household appliance as the neutral line potential offset causes by over or under voltage.

2. Features:
A. Small size but high switching capacity.
B. Built-in high performance MCU provides precise voltage protection.
C. Energy-saving, driven by instantaneous impulse coil.
D. Cost-effective, improved circuit design consumes very low power.
E. Flame retardant cover provides good fire, heat and weather resistance.
F. Withstand the impact voltage: 5KV.
G. Outline Modulus Design: Rail mounting.
tomzn, electric,electric in china, voltage protection device, hi voltage protection reley, constant voltage, over under voltage protection, over and under voltage protection 230v, digital voltage protector, thunder protector surge, voltage elemeter, digital electric voltage protector 110v 220v, voltage stablizer coil wind, ac voltage stabilizer din rail, 175, led tv screen protector, voltage stabilizer for tv 55 inch, voltage and current protection, protector voltaje 80a, protectores de voltage para nevera,electric price list, protector voltage, solar surge arrestor, voltage protector 110v, relay protection device, voltage protector for refrigerator, fuse relay box, over voltage protection, tv guard voltage protection, der, voltage protector, high low voltage protection, fridge guard, dump switch for heater, tv guard, digital ammeter with relay output, digital voltage protector, tv guard voltage protection, surge protection device, voltage stabilizer for led tv, over and under voltage protection 230v, automatic voltage regulator led tv, imanes para refrigerador, lightning protection system, voltaje protector, over voltage and under voltage protection device, voltage stabilizer, voltage protector for refrigerator, overheating protection voltage stabilizer, protector de voltaje, refrigerator voltage protector, over under voltage protection, relay controlled power strip, high voltage protector, protector de voltaje 110, tv voltage protector, lipo under voltage protection
3. Electrical Parameters

Items	Specifications
Model	XHZGQ-63S 1-80A Adjustable
Phase	2P, Up Input Down Output
Frequency	50Hz
Rated Current	AC 1-80A adjustable and Default 80A
Rated AC Voltage	110-120V/ 60Hz
Surge Protection Capacity	175Joules
Max. Current/Spike Voltage	6000A/1.5kV
Over-Voltage Action Cut-Off Value	AC120-260V Adjusted and Default 135V
Under-Voltage Action Cut-Off Value	AC70-110Adjusted and Default 85V
Power Delay after Power Failure	3-300s and Default 30s
Actiont Time	0.2-0.3s
Power Delay Time in first time	30s
Install Way	DIN-rail mounting
Warranty	1 Year
Efficiency	97%
Electrical Life	100K times at least
Standard	IEC60898-2
Outline Size	80x36x66mm
Certificate	CE, ISO

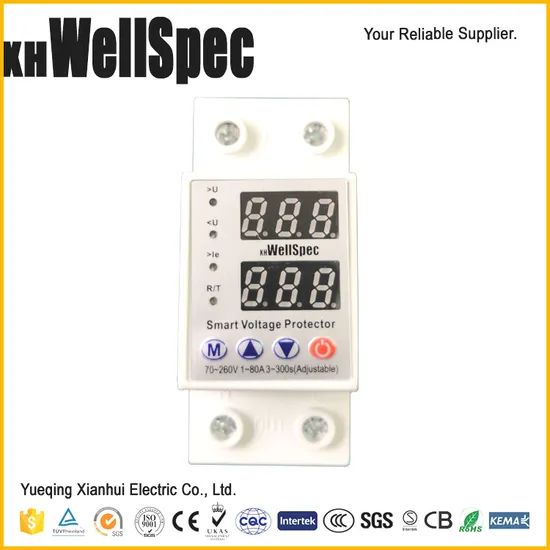

XHZGQ-63S 1-63A Voltage protector digital voltage meter with double LED digital display adopts the high speed, tiny chip and low power consumption CPU as its' center processor inside, assembling with magnetic latching relay as its' main circuit and produced in a high standard of modularized design. The protector can rapidly and safely cut off the circuit to prevent abnormal voltage input the terminal unit and avoid accident occurs when it's over or under voltage during continuous severe impact of high voltage. The protector will automatically connect circuits within the designed time when the voltage recovery to normal and ensures the terminal equipment runs well under unmanned operation mode. The green indicator LED display lights when the power returns to normal and the red indicator LED display lights when the power is over, under normal voltage range or in delayed conditions. The voltage protector is mounted with 35mm din rail on the equipment unit.


4. Testing Items:
Accelerated aging test;
Inductive Voltage Test, DC Resistance Test, Safety Test etc.
5. Operating Instruction:

Company Information
Our Services
Packaging & Shipping
FAQ
1. Working Conditions:
A. Ambient air temperature: -5oC~+40oC, the highest monthly mean temperature should not exceed +35oC;
B. Altitude for installing place should not exceed 2000m;
C. Atmospheric relative humidity: + 40 not more than 50%, the highest humidity is 90%, air relative humidity of 85% or less;
D. Pollution level: level 2;
E: Use category: AC-22A;
F: Installation: install rail with TH35-7.5 profile steel, shall not exceed 5 degrees of vertical inclination.

2. Quality Assurance of Our Voltage Protector:
A. The main materials used in our voltage protector are the high speed, tiny chip and low power consumption CPU as its' center processor inside and assembling with magnetic latching relay as its' main circuit and produced in a high standard of modularized design.
B. The protector will automatically connect circuits as designed time when its' voltage recovery to normal and ensures the terminal equipment runs well under unmanned operation mode.
C. The green indicator LED display lights when the power returns to normal and the red indicator LED display lights when the power is over, under normal voltage range or in delayed conditions.

3. Matters Need Attention:
A. This protector does not have overcurrent protection or short circuit protection, so it shall be installed in front of the protector with overcurrent protection and short circuit breaker;
B. When the protector is disconnected, the relay inside just cuts off L fire line, but N zero line is not broken, so L fire line and N zero line shall not be misconnected when it's in application;
C. Tighten the thread screw when assembling on unit for preventing damage to the product due to poor contact.

4. Why choose us:
A. We are reliable ****** Gold Supplier.
B. We are leading manufacturer in voltage protectors for more than 5 years' experience.
C. Rich experience in Global market, export to more than 50 countries.
D. 100% QC inspection before shipment.
E. Keep research and development the latest technology.
F. Reply within 24 hours.
G. After sale service: Professional technical support.
H. Customized design: We can produce according to your request.
