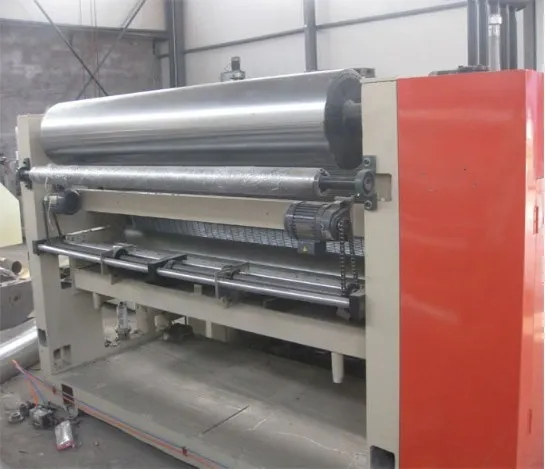

Single Facer Corrugator Machine (micro-flute)

Product Description

Fingerless type Single Facer Corrugator Machine 1) SF-S Fingerless type Single Facer Corrugated Machine drive reducer box with oil immersed type lubricating to reduce noise keep running stable. Adopt gimbals transmission. Separate power.
2) Corrugating roller, pressure roller and glue roller by pneumatic adjustment.
3) Paper transmit adopt vacuum suction method, with wind control system, to keep flute profiles stable of the lower-roller in the condition of running up.
4) Bearing of corrugated and pressure roller adopt high temperature lubricate grease. Glue parts auto supply glue circularly.
5) Upper-lower corrugating rollers are made of 48CrMo high quality alloy steel, after heat-treatment. The hardness HRC58°-60°, surface after grinded. Gluing roller surface are treated by special mesh snick and chrome-plated.
6) Motorized or manual glue width dividing to match the paper width.

Max Effective Width	1100~2200mm
Flute Type	customer-made
Corrugating Roller	Φ280~380mm, 48CrMo alloy steel, hardness HRC58°-60°
Design Speed	80~200m/min
Heating Method	Steam Heating
Economic Working Speed	60~160m/min
