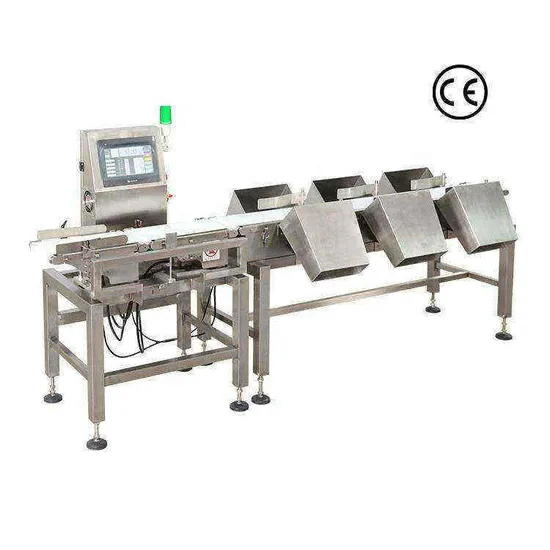

Mango Strawberry Apple Weight Weight Sorting Line Machine

Product Description

Product Description
Automatic Noodles Meat Weighing Packing Conveyor Checker Weigher Machine with Rejector
Basic information Summary:
The Check weigher is designed for fully automated packaging lines,when find the overweight and ultra-light products the conveyor belt will stop and alarm, the screen will display the weight. When the substandard product removed from the product line, the belt will run automatically. Auto ejector is optional.

Model	NG-709-6
Numbers of Sections	2 Sections: Weighing section + Rejection section
	3 Sections: Cushion section + Weighing section + Rejection section
Weighing range	1~200g / 5~1000g (Optional or specified)
Detection object size	L : Max. 200 / 300 / 400 / 500 / 600 mm (Optional or specified)
	W : Max.150 / 200 / 300 / 400 mm (Optional or specified)
	H (mm): Max.100 / 150mm
Weighing section size	L : 200 / 300 / 400 / 500 / 600 mm (Optional or specified)
	W : 150 / 200 / 300 / 400 mm (Optional or specified)
Touch Screen	10.1 inch color TFT touch display
Minimum scale	0.1g ( Based on Max. Weighing range )
Sorting accuracy	± 0.1g ~ ±1g (Based on size of weighing area)
Belt height from ground	680mm~750mm (Or customized height)
Conveyor belt speed	20m / min fixed speed or 15-30m / min adjustable speed (or customized)
Numbers of Sorting	6 Outputs Sorting (or customized)
Material. Surface	304 stainless steel surface polishing
Language	Chinese / English (or customized)
Input voltage / power	Single Phase AC220V 50Hz

Speficiation

Featur
Features
1. EASY: Large LCD touch screen display, Chinese and English interface, Language customized.
2. PRECISON: High-precision sensor with high detection accuracy and fast detection speed.
3. REAL TIME: The graph shows the statistical distribution of the sorting results and grasps the sorting dynamics in real time.
4. MEMORY: 100 kinds of product sorting parameters can be preset, and different products can be quickly switched.
5. AUTO-LEARN: High-speed and high-precision digital filtering algorithm, data filtering parameters, automatic learning.
6. INTELLIGENT: Dynamic zero tracking, including zero tracking when the equipment is continuously running, can automatically correct the weight value.
7. RELIABILITY: Variable frequency motor drive, effectively improve the stability of equipment operation.
8. DATA: Preset data transmission interface, can set or export product sorting parameters via USB.
9. ACCURACY: The photoelectric check weighing trigger method is adopted to effectively improve the accuracy of the equipment.
10. REMOVE: Multiple removal methods are optional, which can remove overweight or underweight products.

Our Advantages
Packaging & Shipping
We have packing teams and shipping forwarder to pack and deliver your products!
Packing: 1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
Shipping: You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.
IEC60695 Glow Wire Flammability Temperature Tester, Glow Wire Combustion Resistance Testing Machine, Glow Wire Burning Tester. FAQ
1.Are your company a trading one or a factory ?
Factory + trade (integration), 20 years focusing on test instruments field, 6 years exporting experience. OEM is also acceptable for us. 2.How to choose the most suitable products? Our team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification. 3.What's the delivery term? At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you. 4.Do you accept customization service? Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs. 5.Can we visit your factory before order? Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
