Outdoor Armored Single Mode Fiber Optic Cable with G652D Fiber HDPE Jacket GYXTW with Factory Price

Product Description

Product Description
Description:

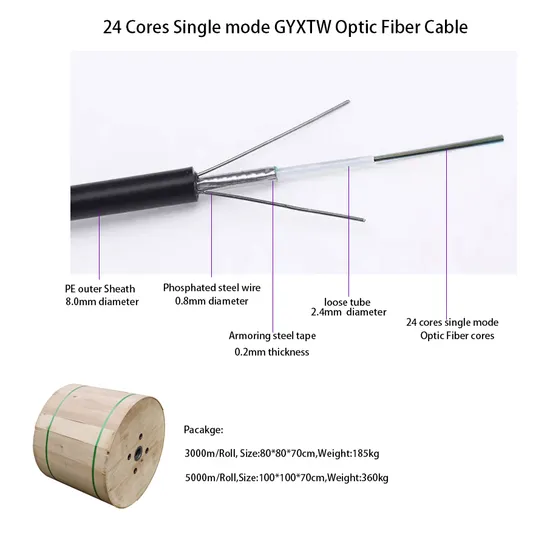

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
Characteristics:
1.Good mechanical and temperature performance
2.Good mechanical and temperature performance
3.Special tube filling compound ensure a critical protection of fiber
4.Crush resistance and flexibility
5.PSP enhancing moisture-proof
6.Two parallel steel wires ensure tensile strength
7.Small diameter, light weight and friendly installation
Optical Characteristics:

G.652 G.655 50/125μm 62.5/125μm Attenuation (+20ºC) @850nm ≤3.0 dB/km ≤3.0 dB/km @1300nm ≤1.0 dB/km ≤1.0 dB/km @1310nm ≤0.36 dB/km ≤0.40 dB/km @1550nm ≤0.22 dB/km ≤0.23dB/km (A) Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km @1300nm ≥1000 MHz·km ≥600 MHz·km Numerical Aperture 0.200±0.015NA 0.275±0.015NA Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm

Technical Parameters:

Cable Type Fiber Count Cable Diameter mm Cable Weight kg/km Tensile Strength/Long/Short Term N Crush Resistance/Long/Short Term N/100mm Bending Radius/Static /Dynamic mm GYXS/GYXTW-2~12 2~12 7 110 600/1500 300/1000 10D/20D

Storage/Operating Temperature : -40ºC to + 70ºC
